Camshaft Bearing Cap

Temporarily tighten the camshaft cap bolts evenly in 2-3 steps.

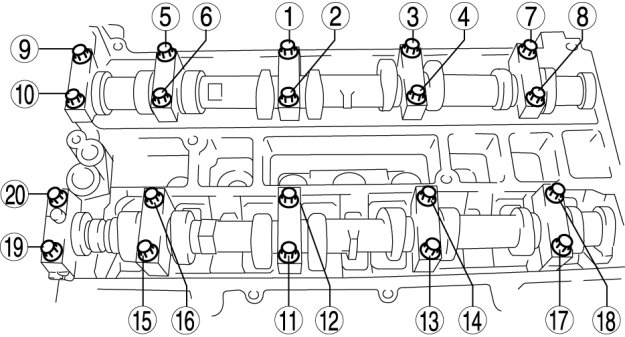

Tighten the camshaft cap bolts in the order shown in the following two steps.






Tightening torque
- Step 1: 5.0-9.0 Nm {51-91 kgf-cm, 45-79 in-lbf}
- Step 2: 14-17 Nm {1.5-1.7 kgf-m, 11-12 ft-lbf}
