No.2 System Does Not Control Car-Navigation System By Steering Switch - Car-Navigation System




NO.2 SYSTEM DOES NOT CONTROL CAR-NAVIGATION SYSTEM BY STEERING SWITCH [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]

Possible Cause:





Diagnostic procedure

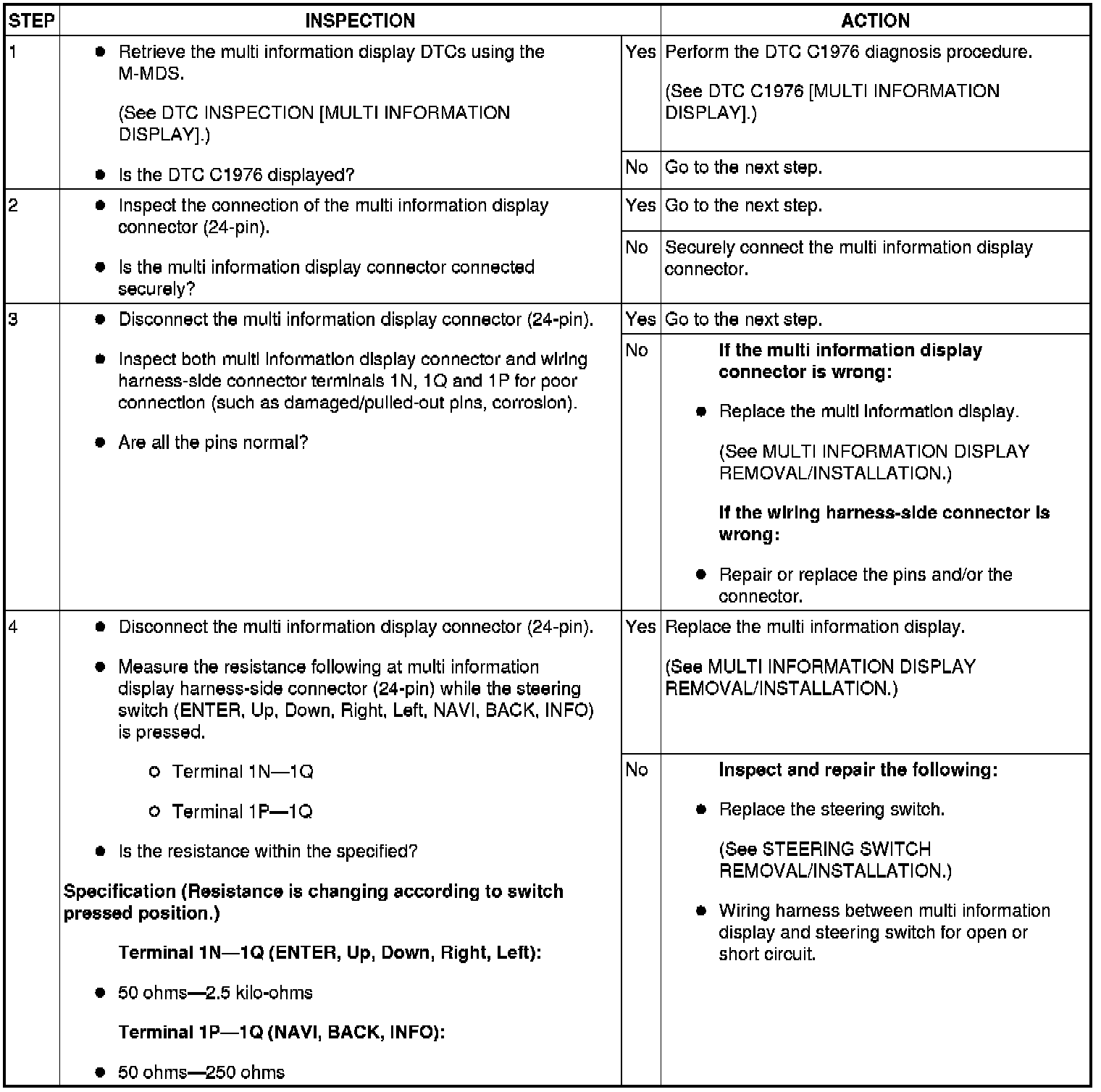

Step 1-Step 4:
