Connector Locations

Power Window Main Switch:

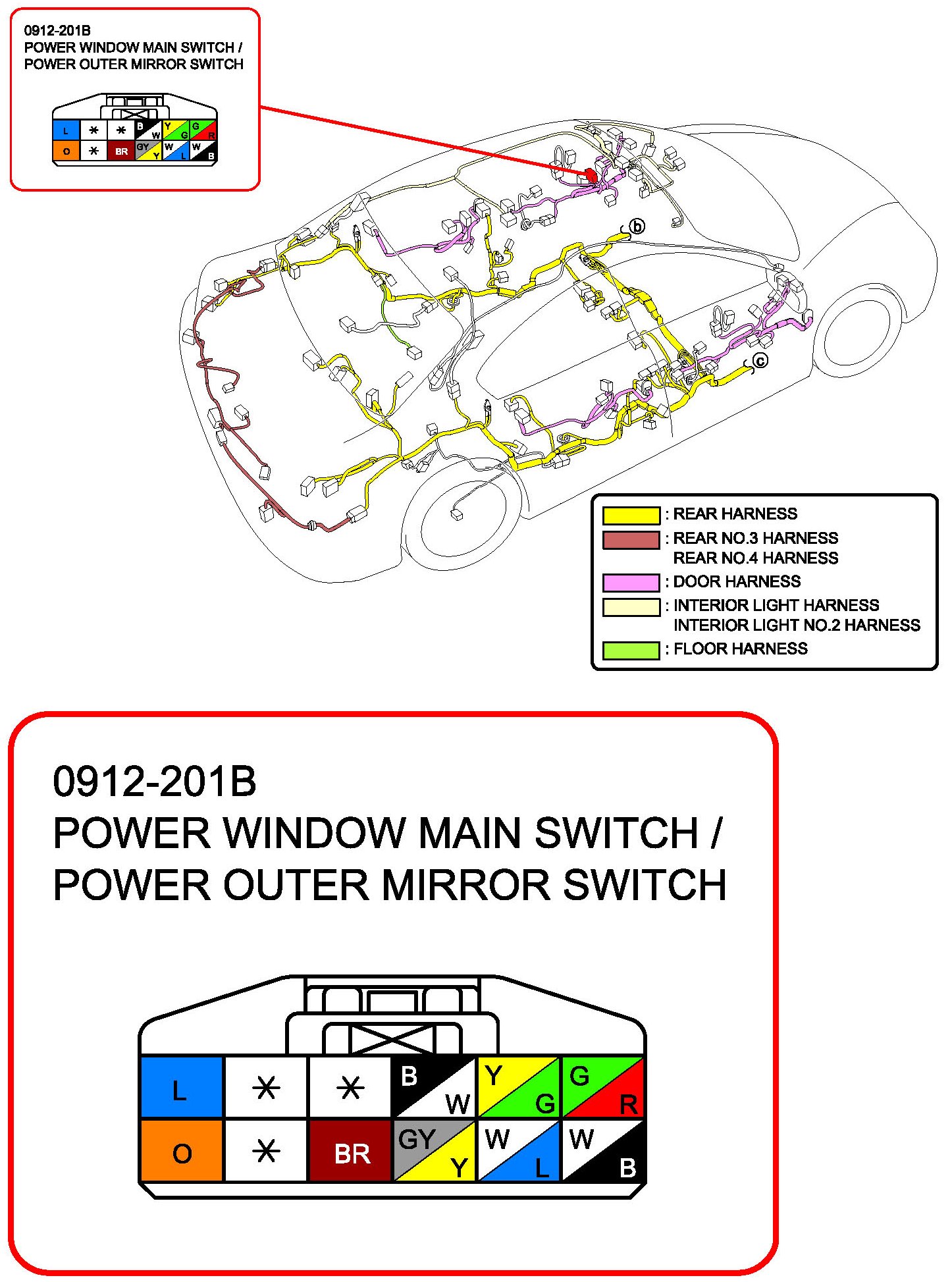

Power Window Main Switch / Power Outer Mirror Switch:






Power Window Subswitch RF:






Power Window Subswitch LR:

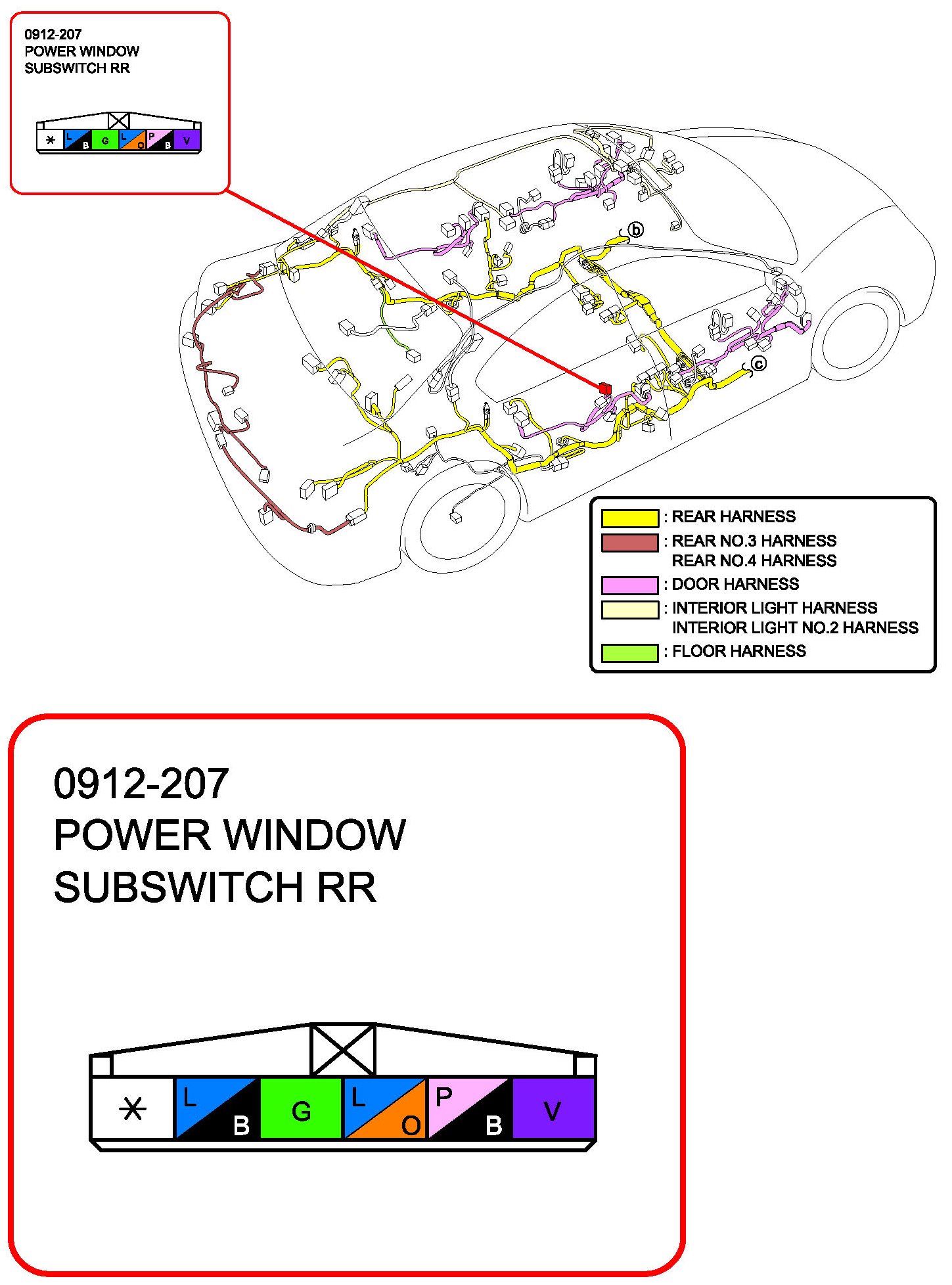

Power Window Subswitch RR:

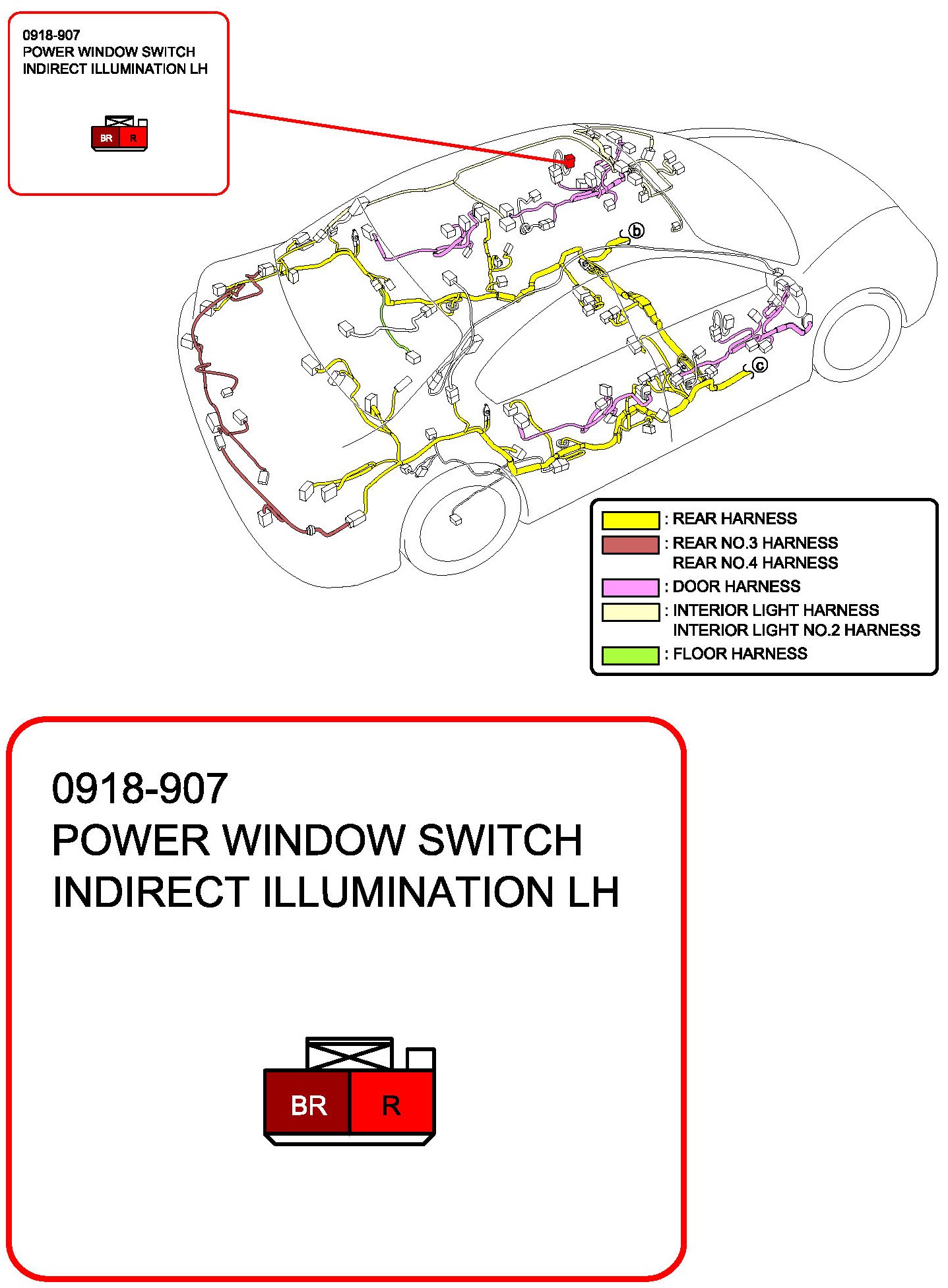

Power Window Switch Indirect Illumination LH:

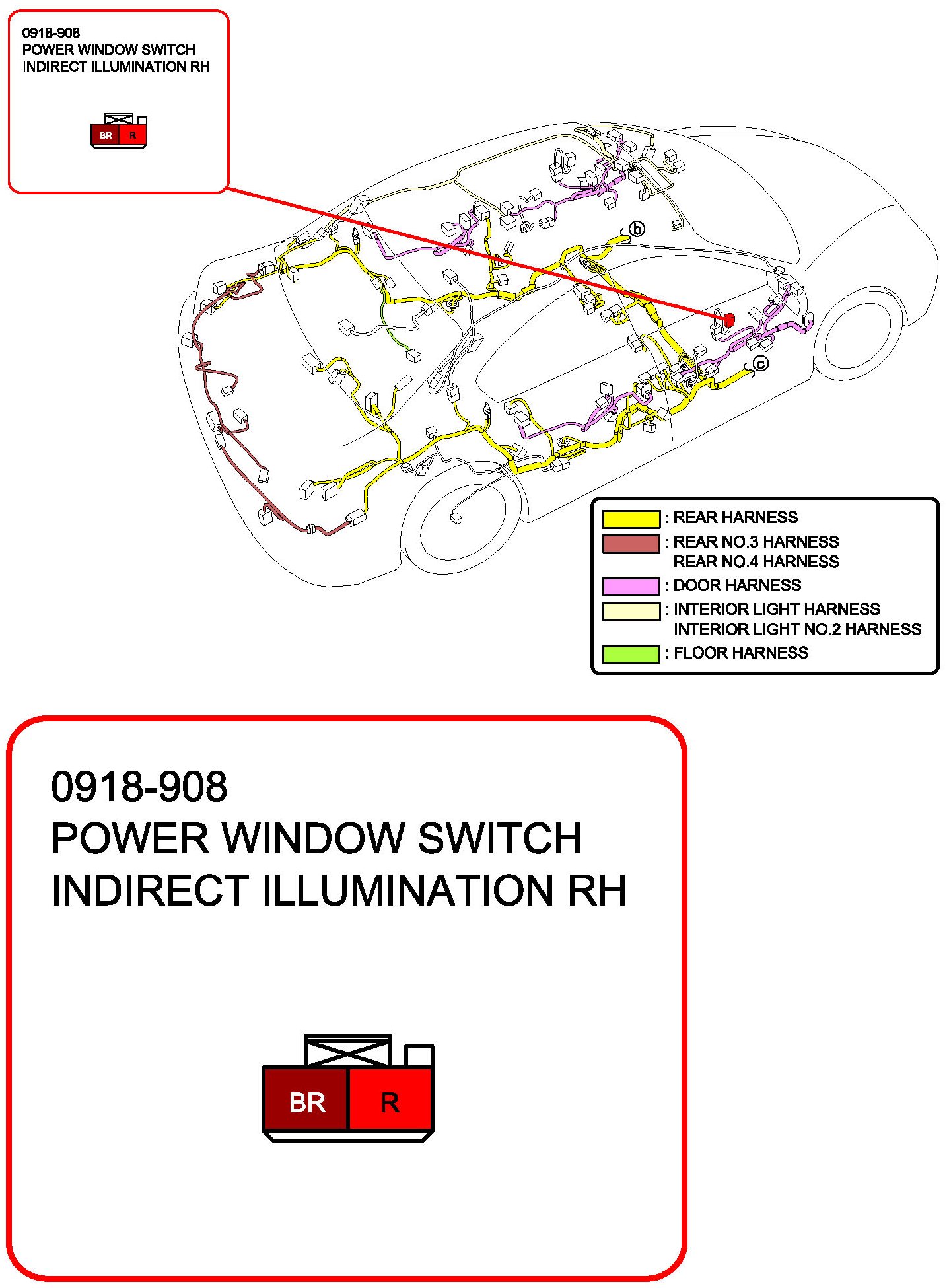

Power Window Switch Indirect Illumination RH:
