DTC B11FD:1F [Advanced Keyless Entry And Push Button Start System]: Notes
DTC B11FD:1F (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Erratic signal of keyless antenna (exterior, LF) |
| DETECTION CONDITION |
- Keyless control module detects the open circuit in keyless antenna (exterior, LF) circuit.
|
| POSSIBLE CAUSE |
- Front outer handle (LH) connector or terminals malfunction
- Keyless control module connector or terminals malfunction

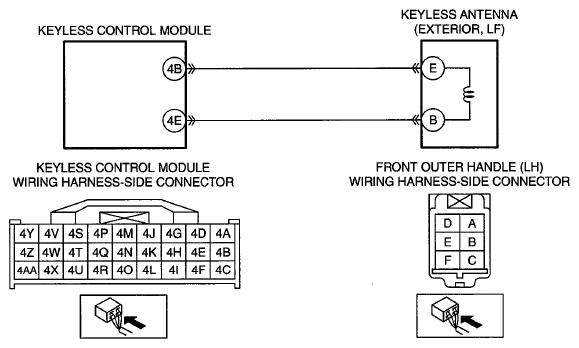

- Short to ground in the wiring harness between the following terminals:
- Front outer handle (LH) terminal E-Keyless control module terminal 4B
- Front outer handle (LH) terminal B-Keyless control module terminal 4E
- Open circuit in the wiring harness between the following terminals:
- Front outer handle (LH) terminal E-Keyless control module terminal 4B
- Front outer handle (LH) terminal B-Keyless control module terminal 4E
- Keyless antenna (exterior, LF) malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
