Clock Spring And SAS Control Module Connector End View

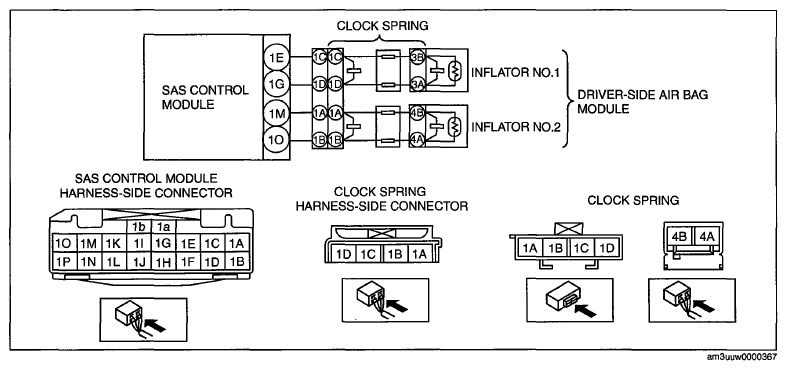

Fig 1: Clock Spring And SAS Control Module Connector End View
G06731418Courtesy of MAZDA MOTORS CORP.
