Monitoring System And Control System Device Relationship Chart

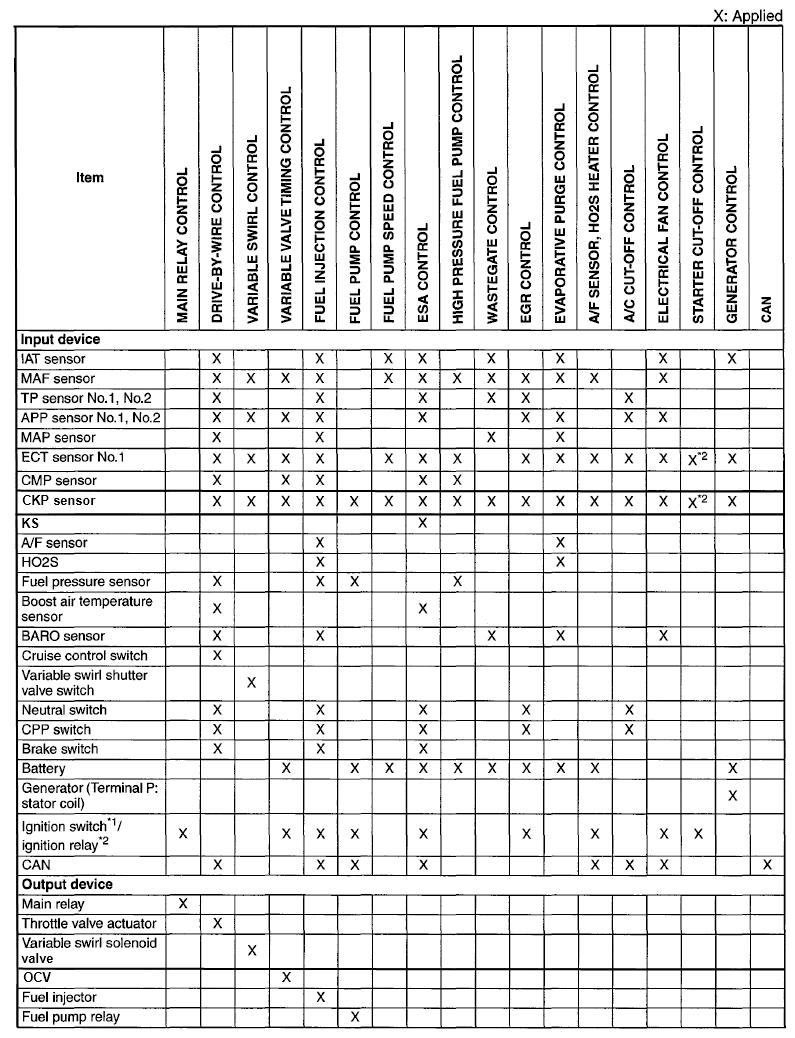

Fig 1: Monitoring System And Control System Device Relationship Chart (L3 With TC) (1 Of 2)
G06731589Courtesy of MAZDA MOTORS CORP.

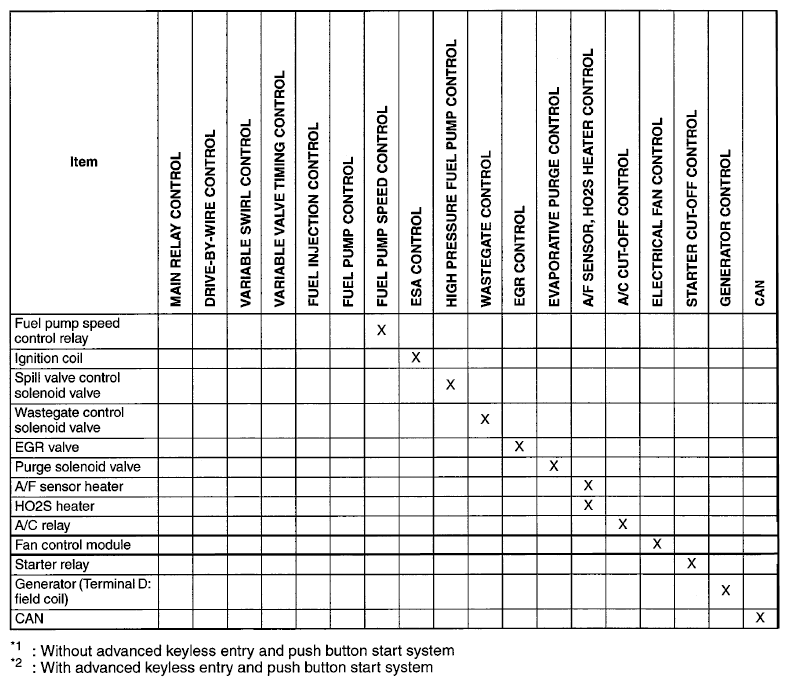

Fig 2: Monitoring System And Control System Device Relationship Chart (L3 With TC) (2 Of 2)
G06731590Courtesy of MAZDA MOTORS CORP.
