Keyless Entry System Wiring Diagram [Advanced Keyless Entry And Push Button Start System]

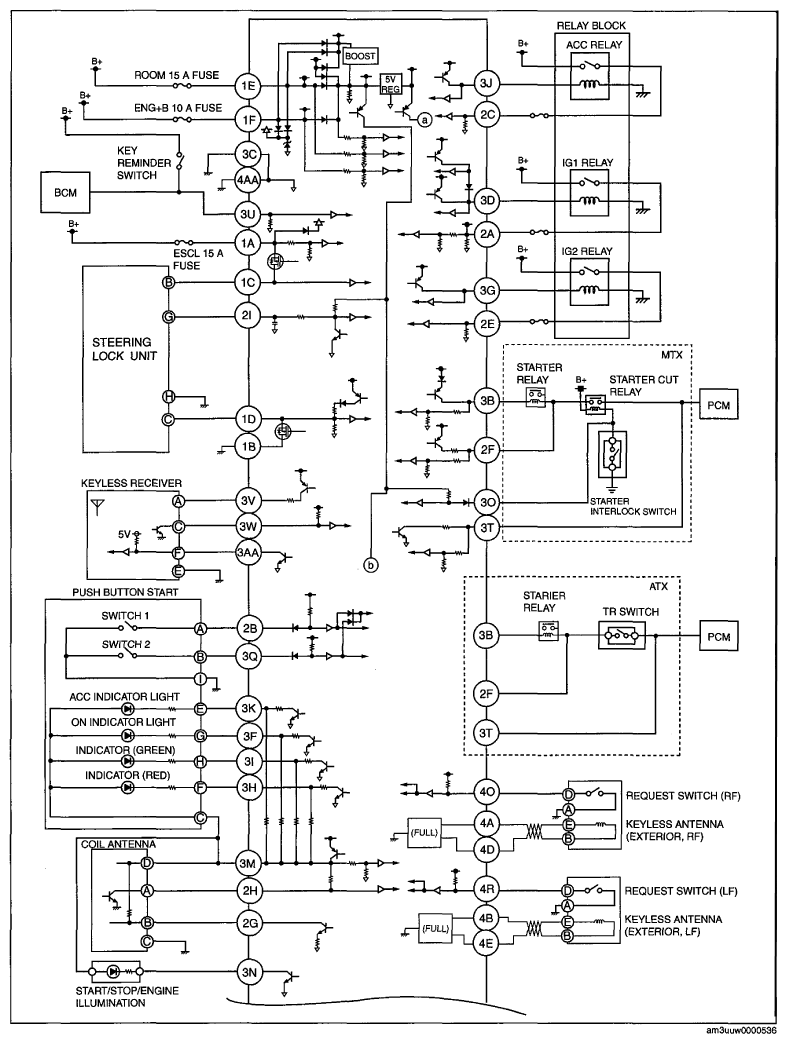

Fig 1: Keyless Entry System Wiring Diagram - Advanced Keyless Entry And Push Button Start System (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Keyless Entry System Wiring Diagram - Advanced Keyless Entry And Push Button Start System (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
