Electrical Diagrams

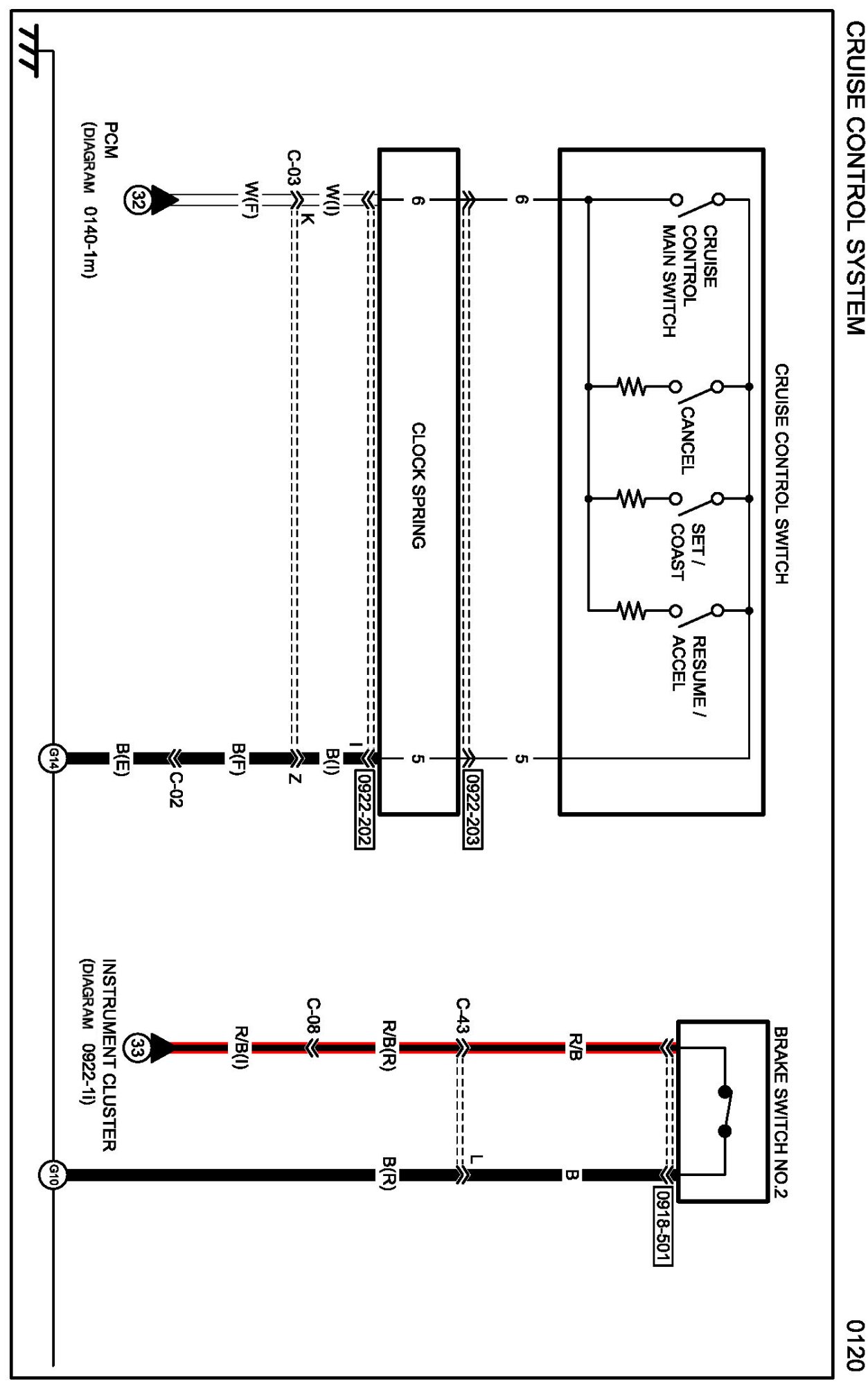

Diagram 0120:

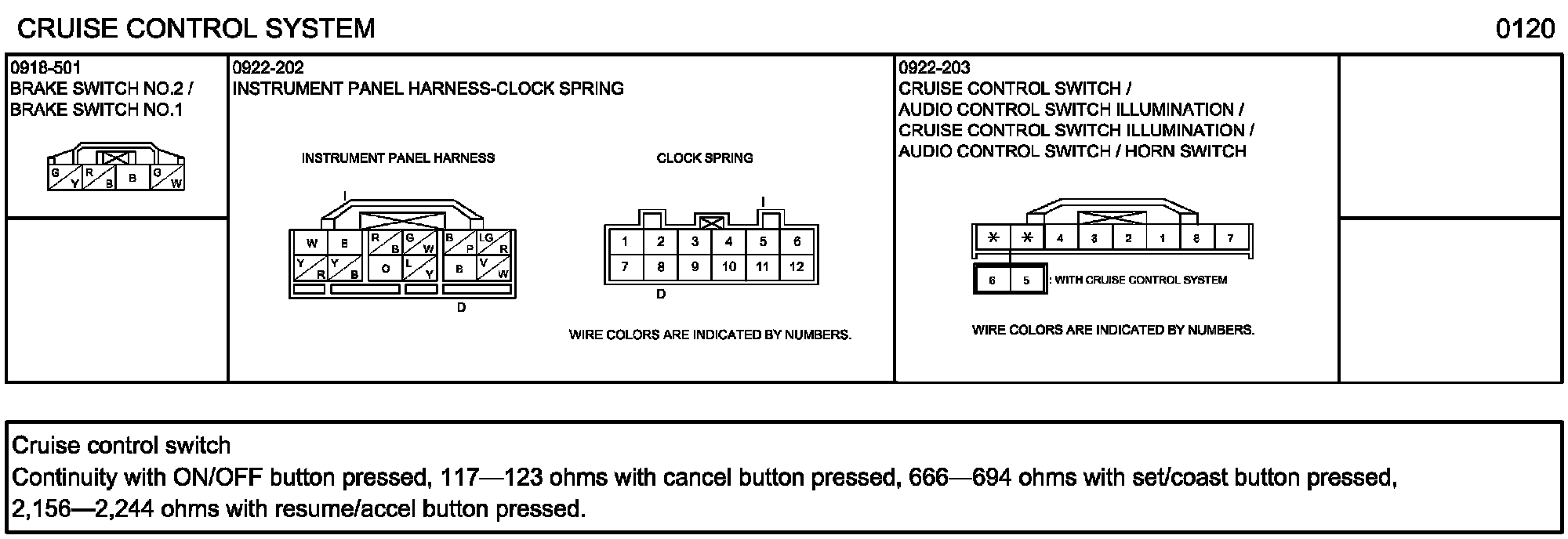

Connectors 0120:

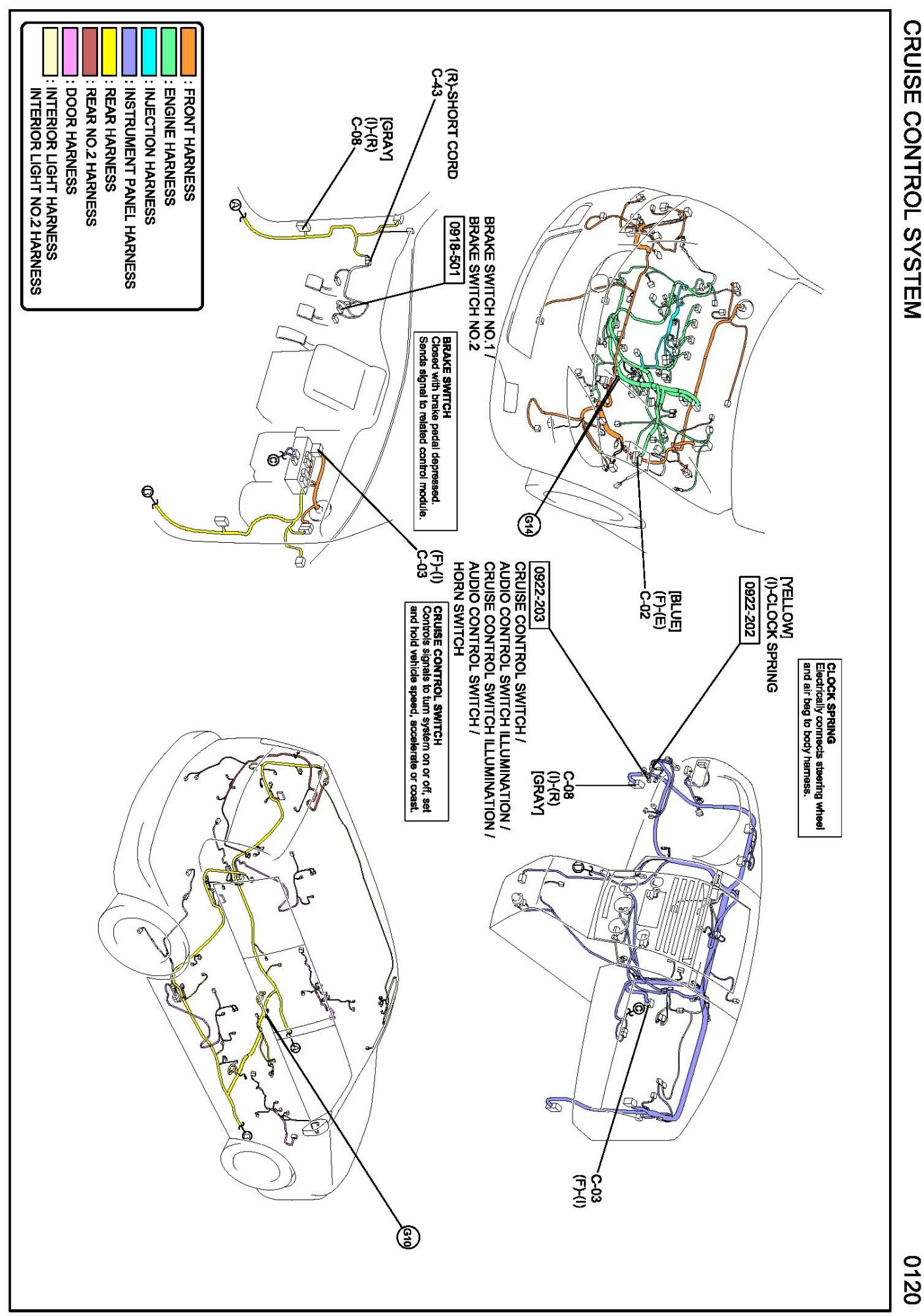

Routing View 0120:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams by Diagram Name
