Flywheel: Testing and Inspection

FLYWHEEL INSPECTION

1. Refer to CLUTCH UNIT REMOVAL/INSTALLATION to remove the flywheel. Service and Repair
NOTE:

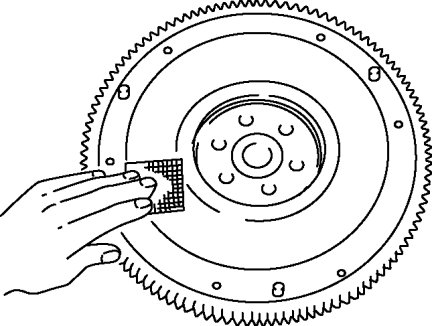

1 Correct slight scratches and discoloration using sandpaper.





2 Inspect the runout of the surface that contacts the clutch disc with the flywheel installed to the crankshaft.

2. Inspect the surface that contacts the clutch disc for scratches, nicks, and discoloration.

3. Inspect the ring gear teeth for damage and wear.

4. Install the flywheel. Service and Repair

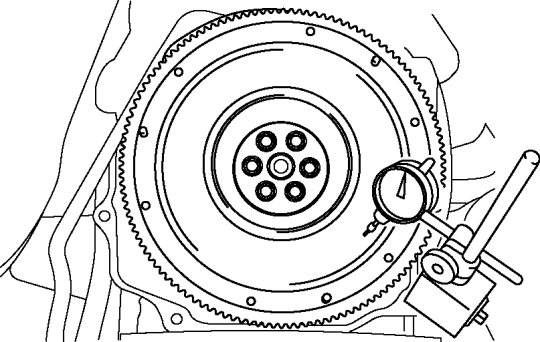

5. Measure the runout of the surface that contacts the clutch disc using a dial gauge.






- If it exceeds the maximum specification, replace the flywheel. Service and Repair

Flywheel maximum runout
- 0.1 mm {0.004 in}
