Washer Fluid Level Switch: Service and Repair

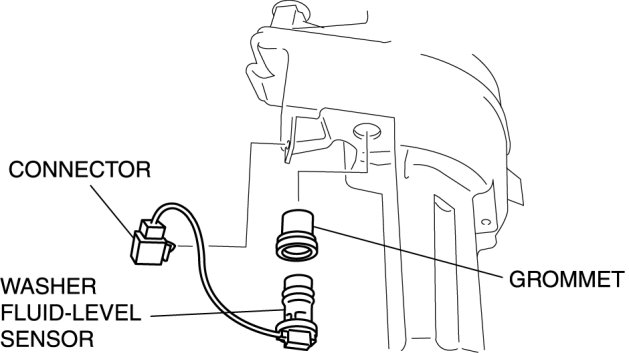

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the washer tank. Service and Repair

4. Disconnect the connector.






5. Remove the washer fluid-level sensor.

6. Remove the grommet.

7. Install in the reverse order of removal.
