Washer Fluid Level Switch: Testing and Inspection

WASHER FLUID-LEVEL SENSOR INSPECTION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

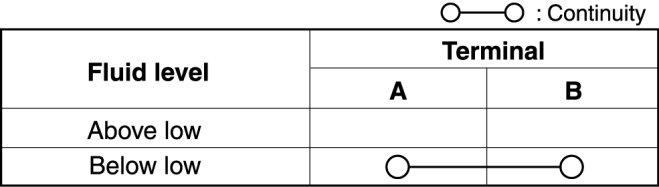

3. Inspect for continuity between the washer fluid-level sensor terminals using an ohmmeter.






- If not as specified, replace the washer fluid-level sensor.
