Combination Switch Removal/Installation

COMBINATION SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Driver-side air bag module Driver-Side Air Bag Module Removal/Installation

b. Steering wheel Service and Repair

c. Meter hood Meter Hood Removal/Installation

d. Column cover Service and Repair

e. Clock spring Service and Repair

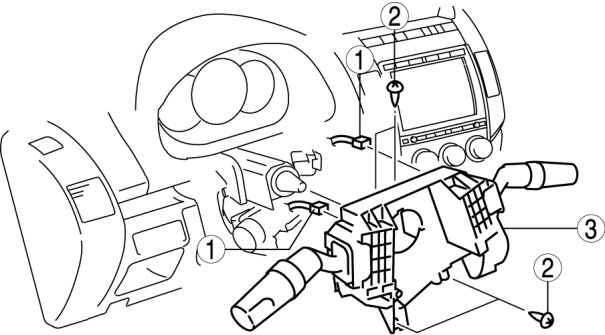

4. Remove in the order indicated in the table.










5. Disconnect the steering angle sensor connector.

6. Install in the reverse order of removal.

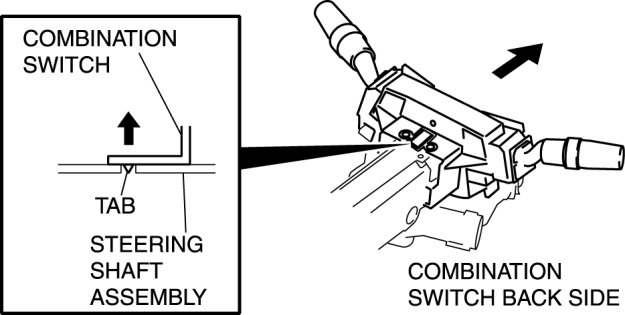

Combination Switch Removal Note

1. Pull the combination switch locks in the direction indicated in the figure and disengage the tab.






2. Pull the combination switch outward, then remove it.
