Center Panel Module Disassembly/Assembly

CAUTION:

Before disassembling the center panel module, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

Disassemble in the order indicated in the table in illustration.

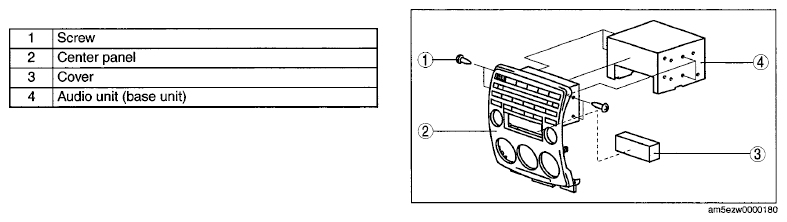

Fig 1: Identifying Center Panel Module Disassemble/Assemble Components
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
