Center Panel Module Removal/Installation: Notes

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    2. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Center console (with rear vent) (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    5. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table in illustration.

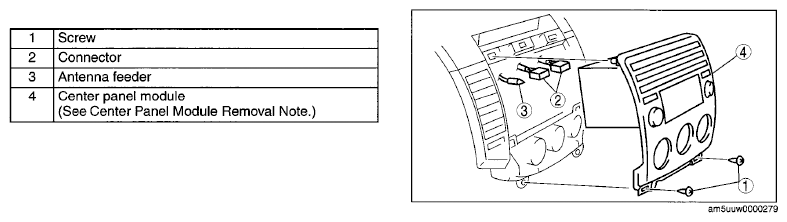

    Fig 1: Identifying Center Panel Module Remove/Install Components
    G06762602Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
    CAUTION:
    • When installing the center panel module, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.
