Ignition Switch Removal/Installation: Notes

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
  4. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.

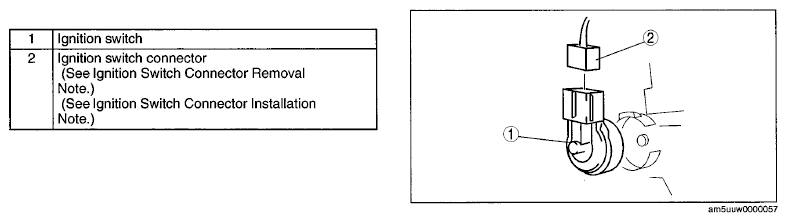

    Fig 1: Identifying Ignition Switch Remove/Install Components
    G06762644Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
