Heated Oxygen Sensor (Ho2S) Inspection
>>
HO2S Circuit Open/short Inspection
>>
Short circuit
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Short circuit
If there is continuity, there is a short circuit. Repair or replace the wiring harness.
HO2S terminal A and body ground
HO2S terminal A and power supply
HO2S terminal B and power supply

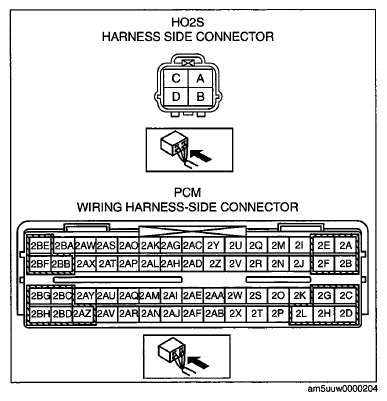

Fig 1: Identifying HO2S Connector Terminals
Courtesy of MAZDA MOTORS CORP.
