Fuel Injector Removal/Installation: Notes

  1. Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  4. Disconnect the negative battery cable.
  5. Disconnect the fuel injector connector.
  6. Remove in the order indicated in the table in illustration.

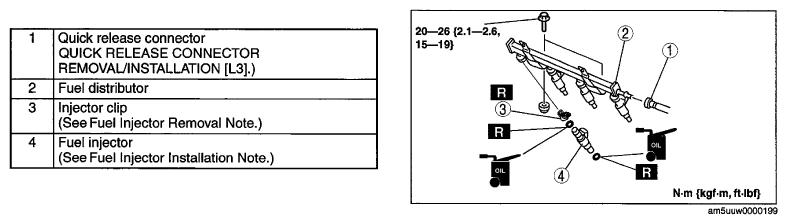

    Fig 1: Fuel Injector Replacement Components With Torque Specifications
    G06760766Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
  8. Inspect all related parts by performing "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
