DTC Inspection - Advanced Keyless Entry And Push Button Start System

DTC INSPECTION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

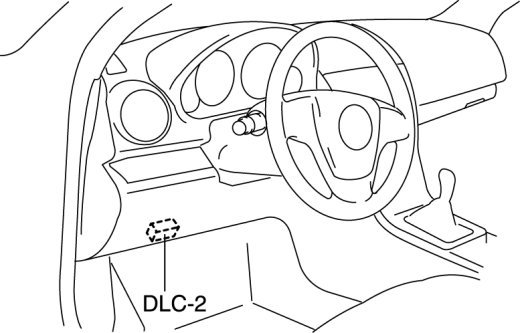

1. Connect the M-MDS to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

- When using the IDS (laptop PC)

1 Select "Self Test".
2 Select "Modules".
3 Select "RKE".

- When using the PDS (Pocket PC)

1 Select "Module Tests".
2 Select "RKE".
3 Select "Self Test".

3. Verify the DTC according to the directions on the screen.

- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.

4. After completion of repairs, clear all DTCs stored in the keyless control module.
