No.1 Auto Door Lock Function Does Not Operate - Auto Door Lock System




2010 -
Mazda6 -
Body and Accessories


No.1 AUTO DOOR LOCK FUNCTION DOES NOT OPERATE [AUTO DOOR LOCK SYSTEM]

Description/Possible Cause:





Diagnostic procedure

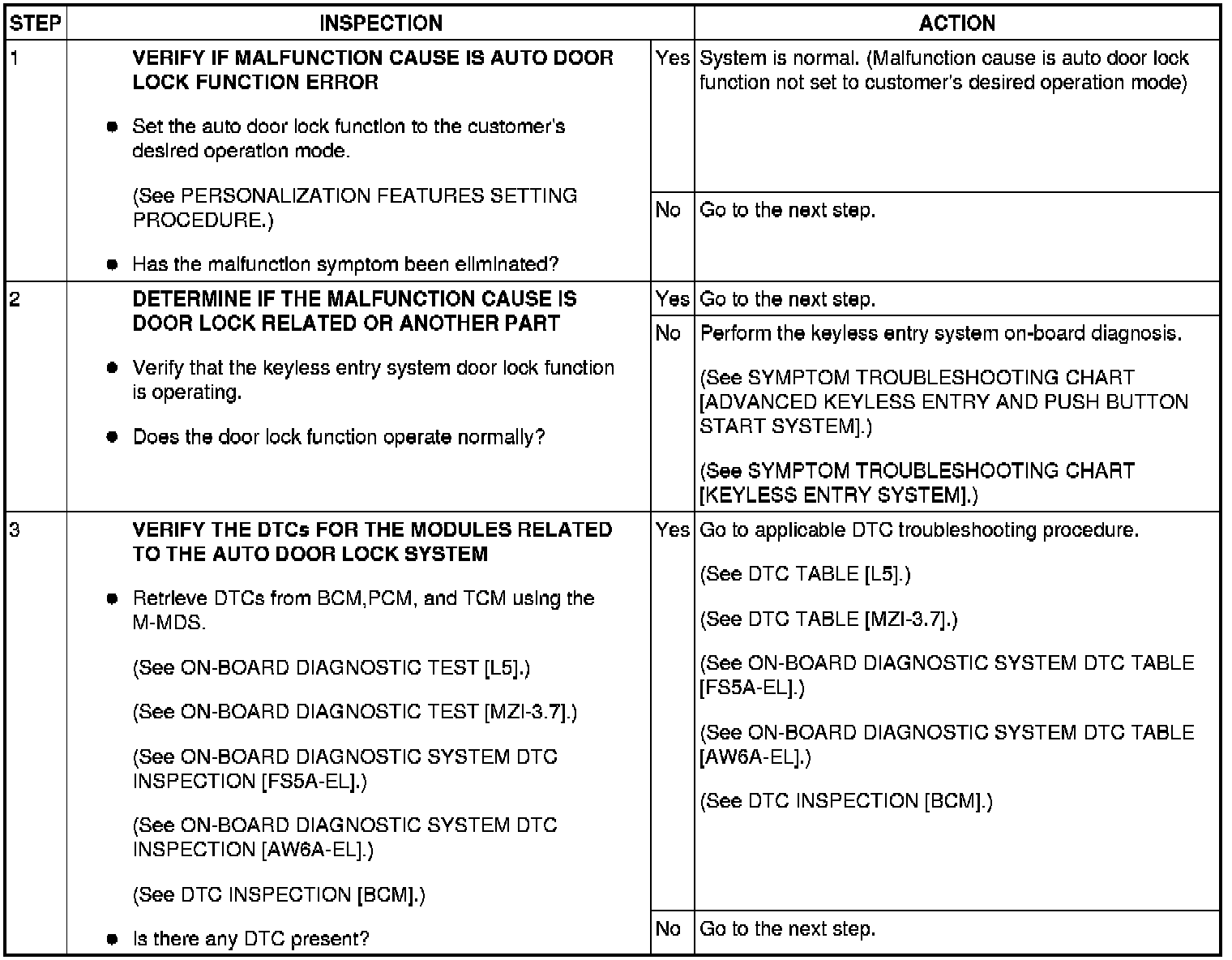

Step 1-Step 3:

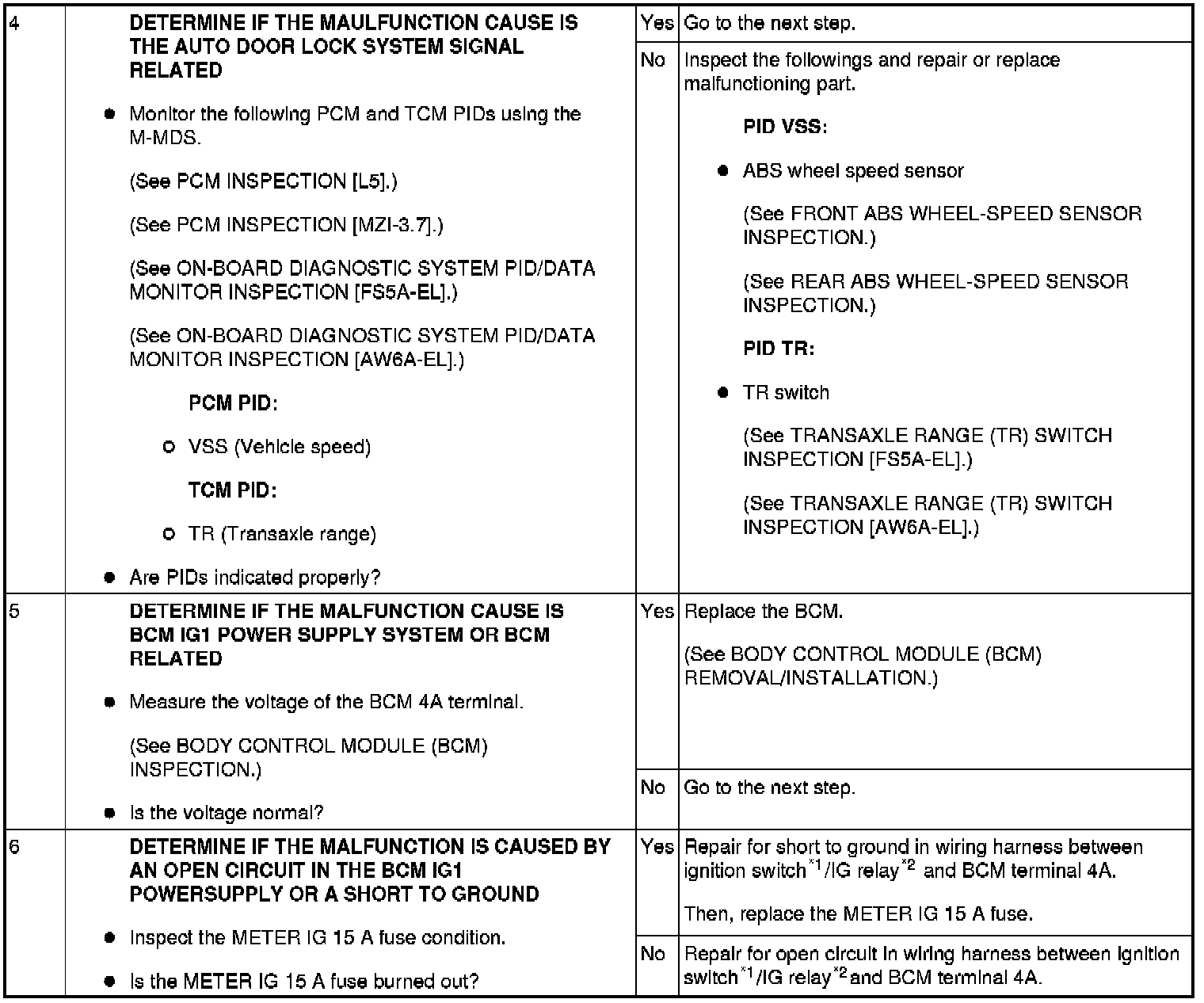

Step 4-Step 6:





*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system
