Traction Control Switch: Testing and Inspection

TCS OFF SWITCH INSPECTION

1. Remove the TCS OFF switch. Service and Repair

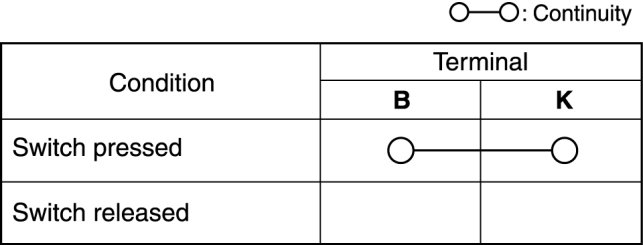

2. Verify that the continuity between the TCS OFF switch terminals is as indicated in the table.

- If not as indicated in the table, replace the TCS OFF switch.

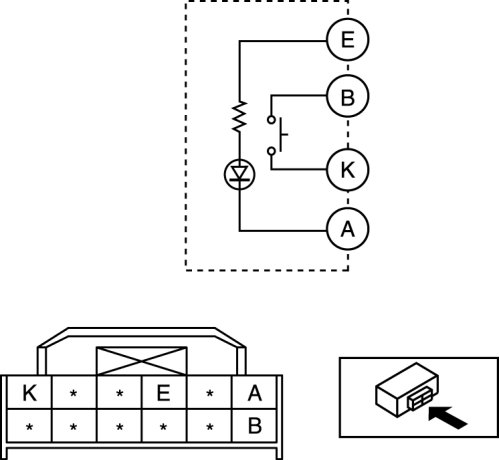

3. Apply battery voltage to TCS OFF switch terminal E, and connect terminal A to ground.

4. Verify that the LED illuminates.

- If there is any malfunction, replace the TCS OFF switch.
