No.2 The Driver's Side Power Window Is Inoperative - Power Window Systems (Without Exterior Open/Close Function)




No.2 THE DRIVER'S SIDE POWER WINDOW IS INOPERATIVE [POWER WINDOW SYSTEMS (WITHOUT EXTERIOR OPEN/CLOSE FUNCTION)]

Possible Cause:





Diagnostic procedure

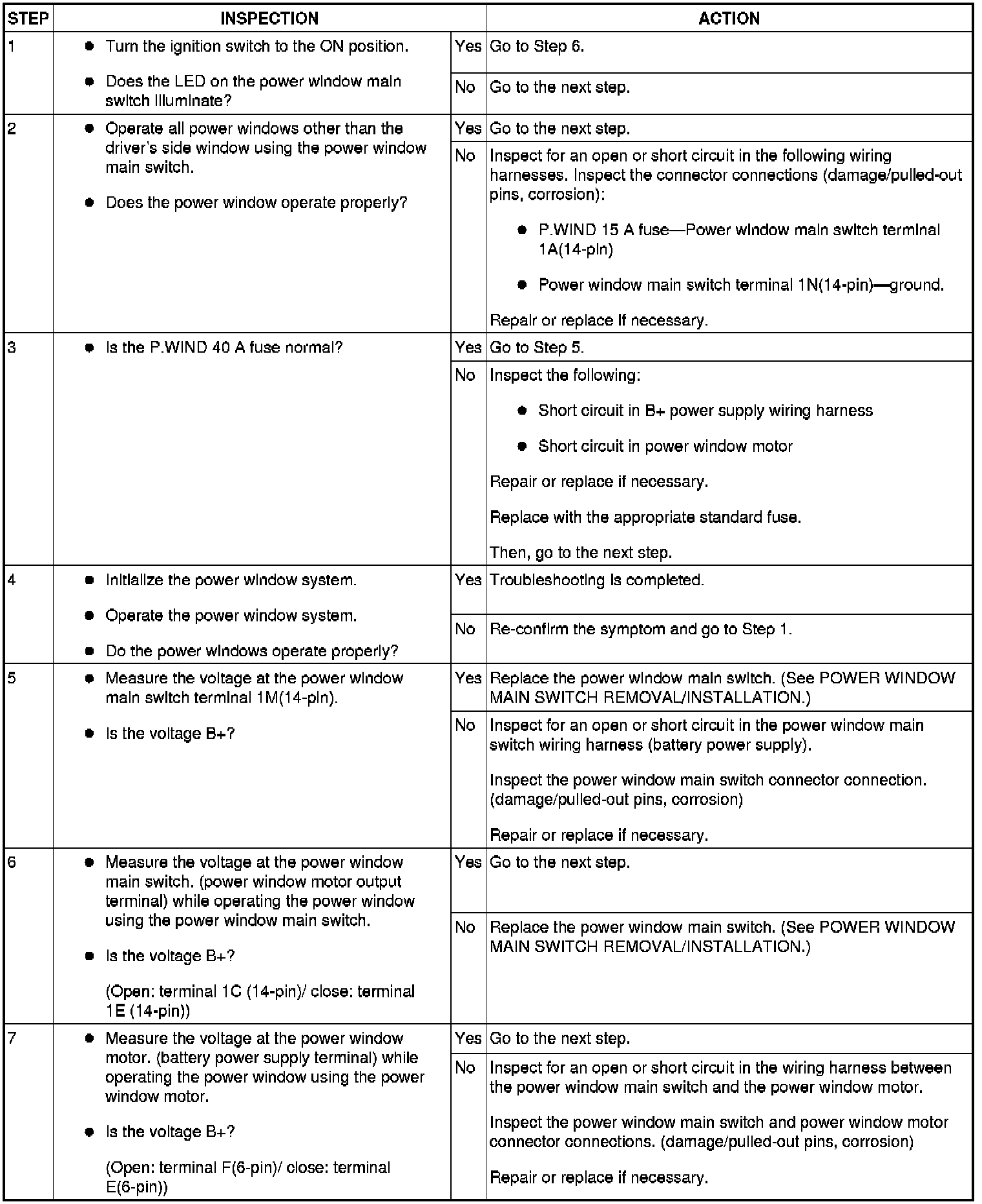

Step 1-Step 7:





Step 8-Step 9:
