Power Window System Wiring Diagram - Power Window Systems (Without Exterior Open/Close Function)

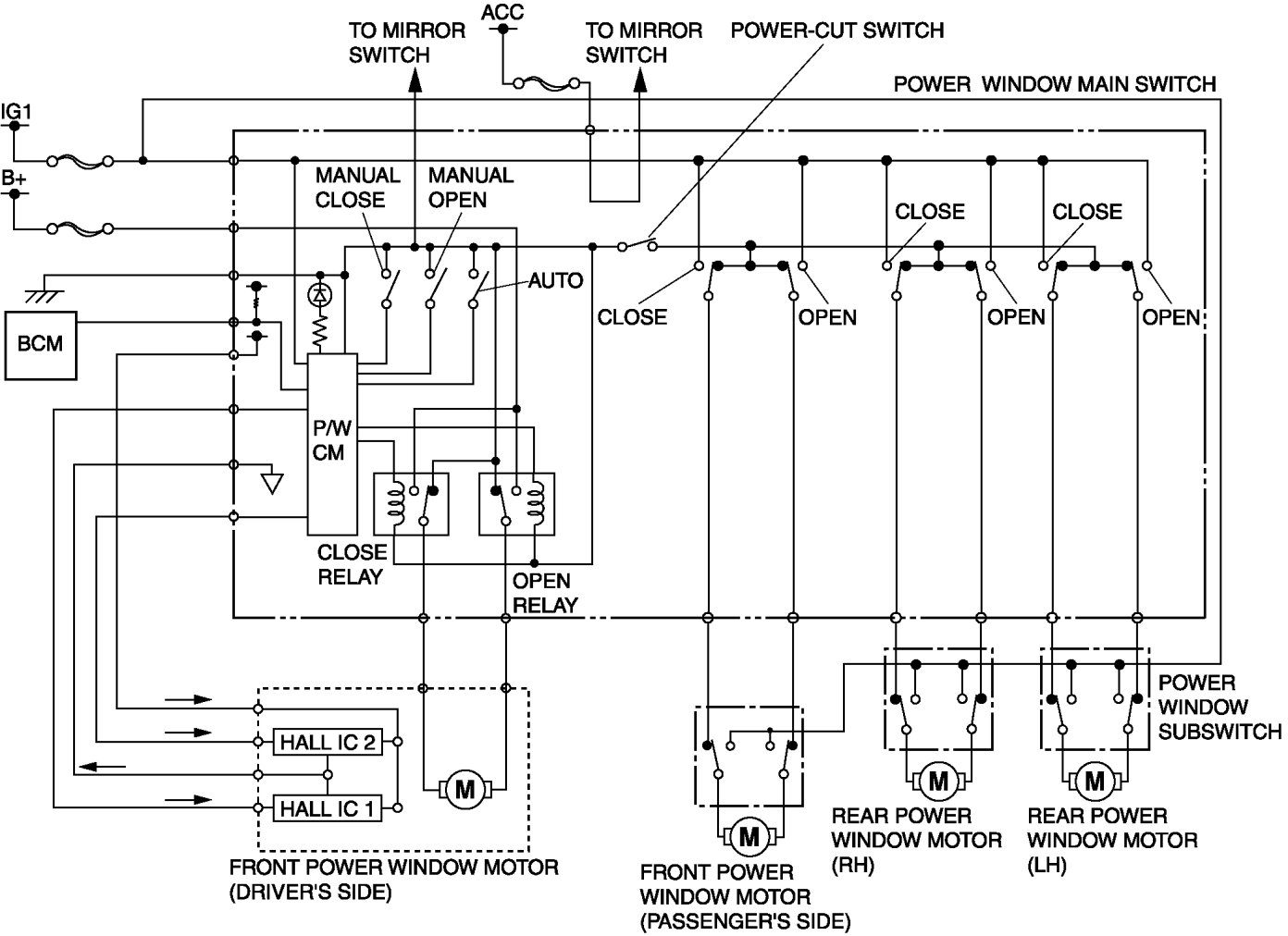

POWER WINDOW SYSTEM WIRING DIAGRAM [POWER WINDOW SYSTEMS (WITHOUT EXTERIOR OPEN/CLOSE FUNCTION)]

Power Window Main Switch
