Home
>>
Mazda
>>
2010
>>
CX-7 AWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Locations
>>
Component Locations
>>
Automatic Transaxle Location Index - AW6A-EL, AW6AX-EL
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

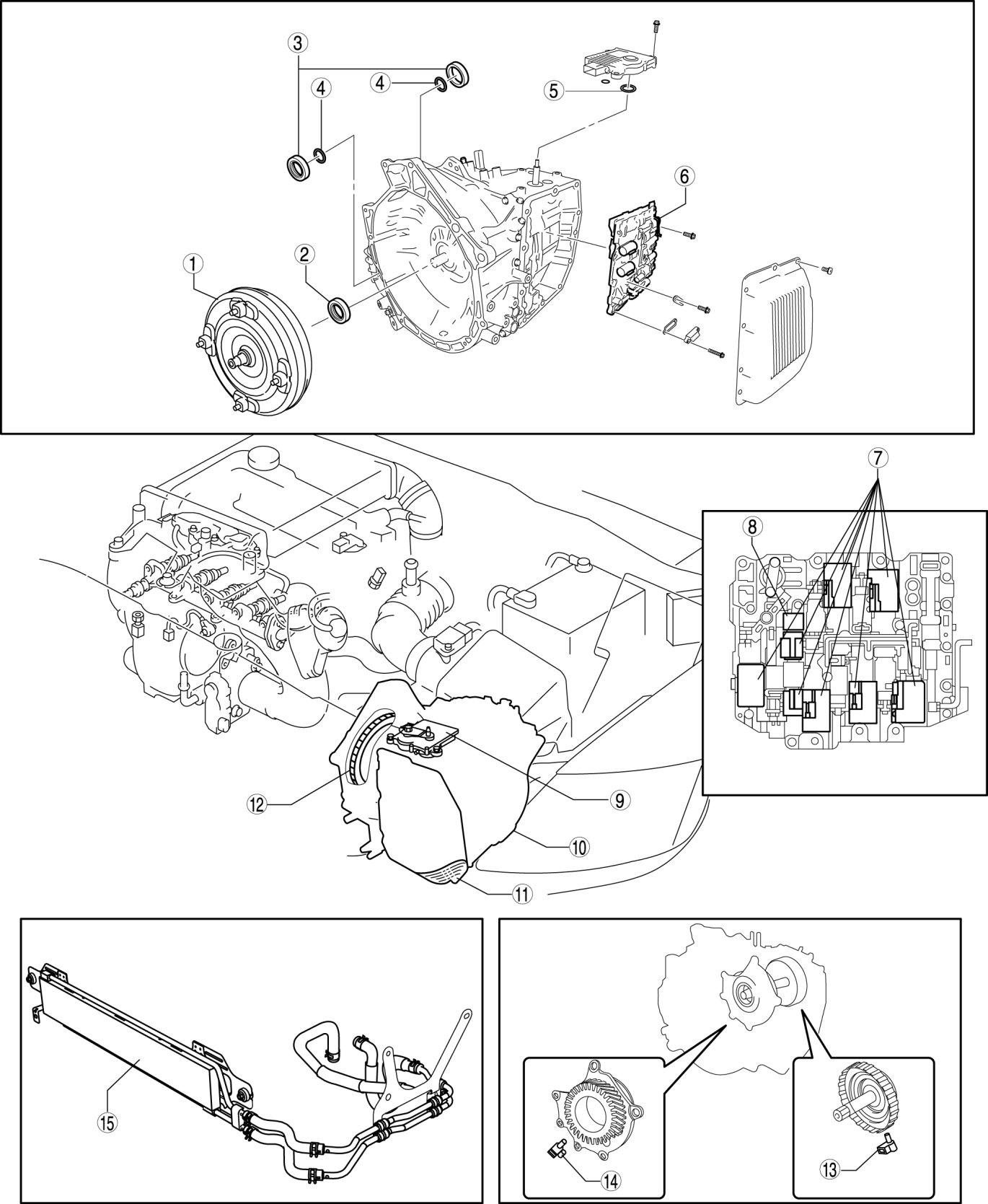

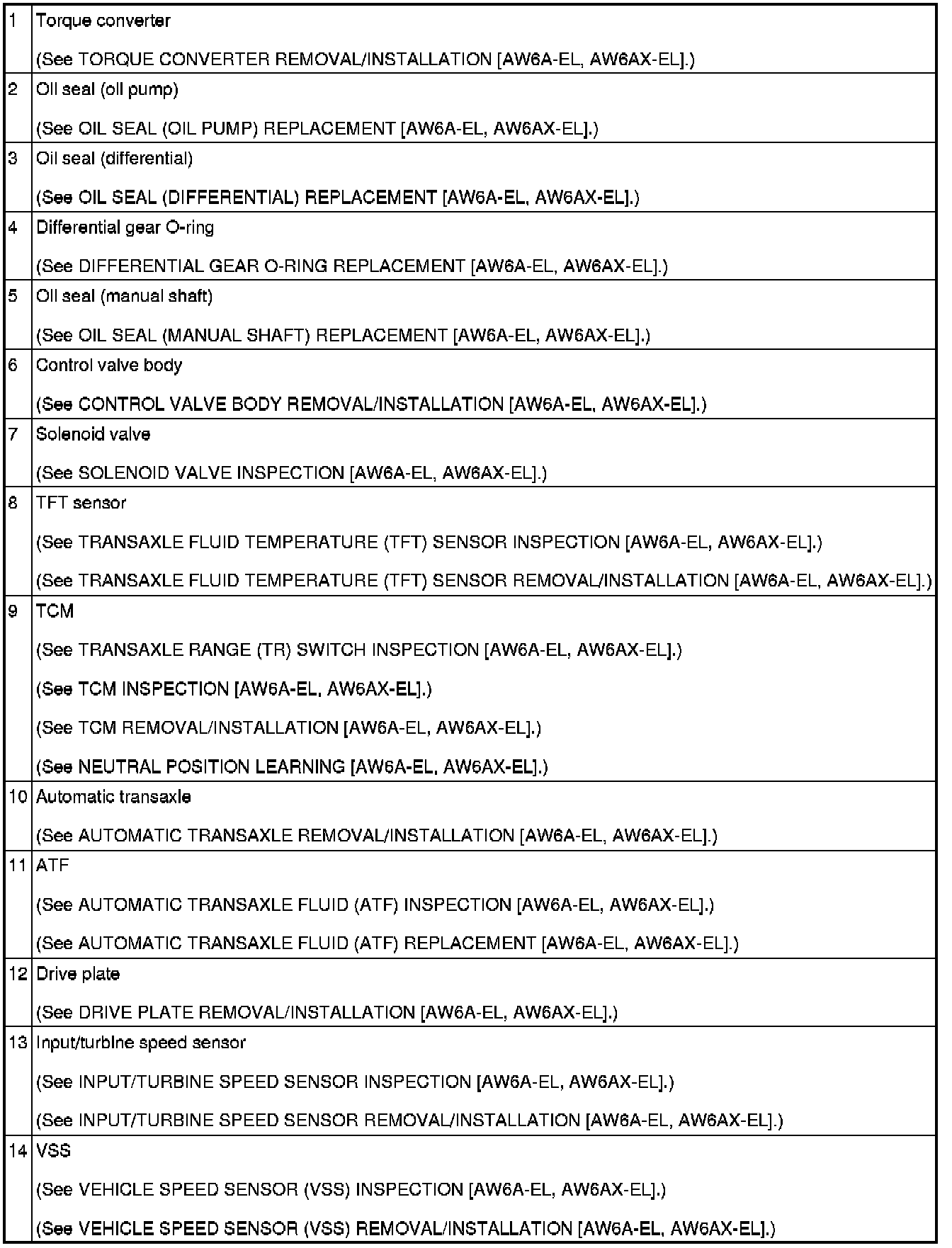

Automatic Transaxle Location Index - AW6A-EL, AW6AX-EL
AUTOMATIC TRANSAXLE LOCATION INDEX [AW6A-EL, AW6AX-EL]
