Windows: Description and Operation

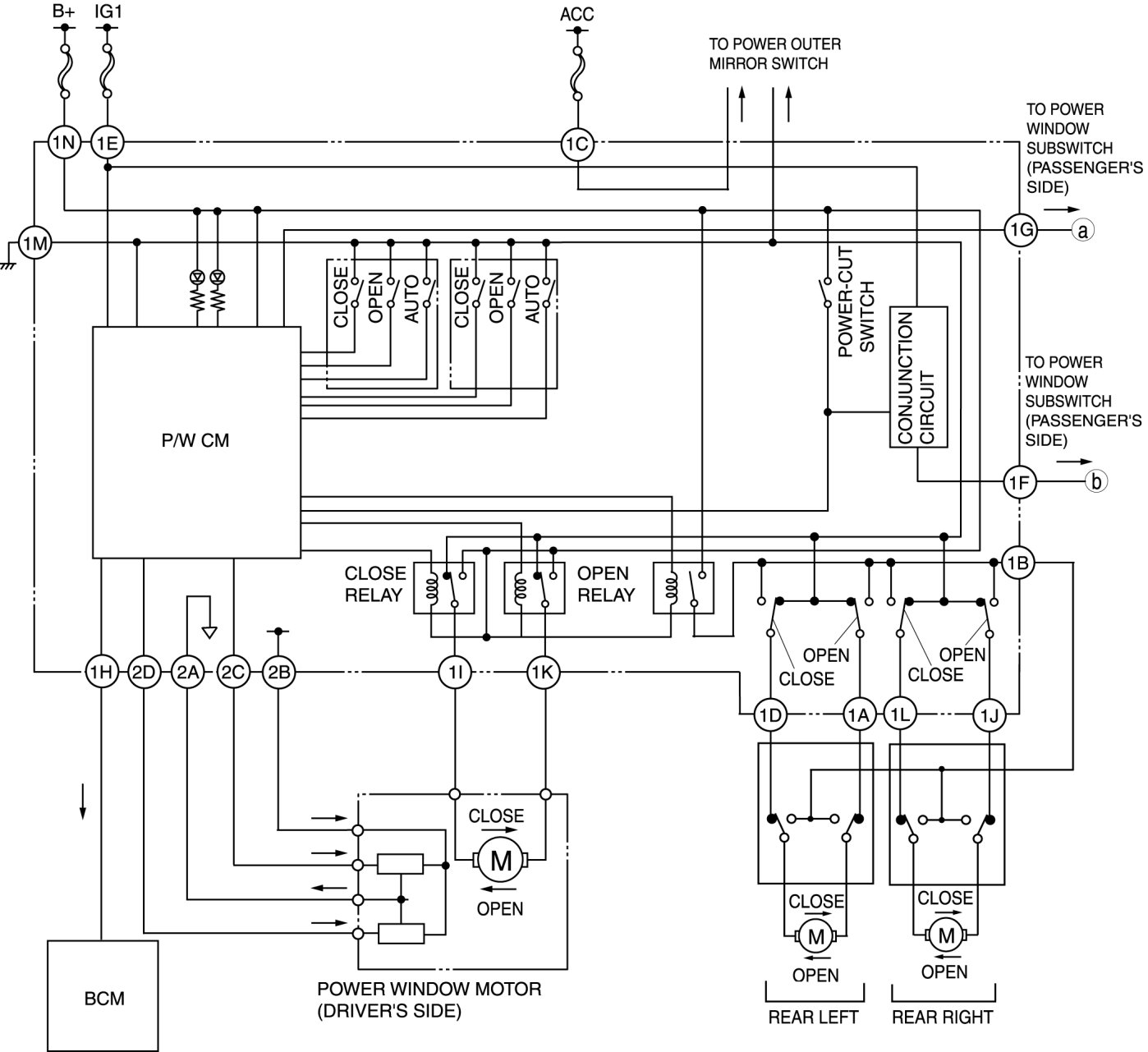

POWER WINDOW SYSTEM WIRING DIAGRAM [POWER WINDOW SYSTEMS (AUTO-OPEN/CLOSE FUNCTION)]

Power Window Main Switch

Power Window Subswitch (Passenger side)
