Keyless Entry System Wiring Diagram - Advanced Keyless And Start System

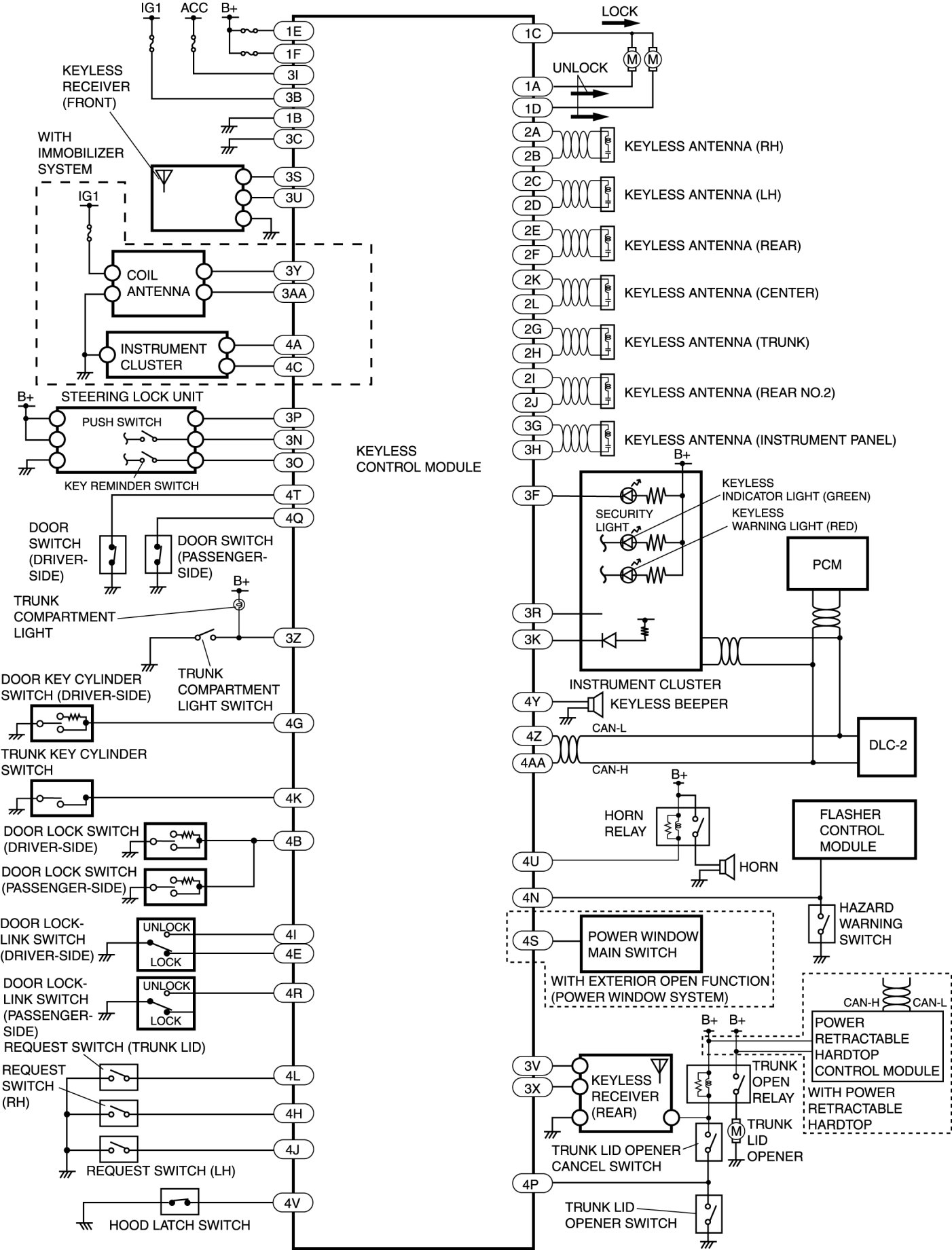

KEYLESS ENTRY SYSTEM WIRING DIAGRAM [ADVANCED KEYLESS AND START SYSTEM]
