Transverse Member Removal/Installation




TRANSVERSE MEMBER REMOVAL/INSTALLATION

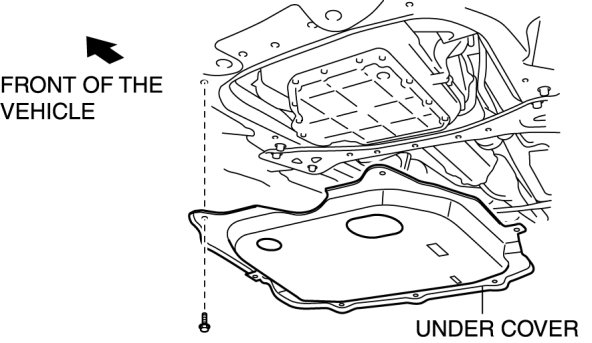

1. Remove the under cover.

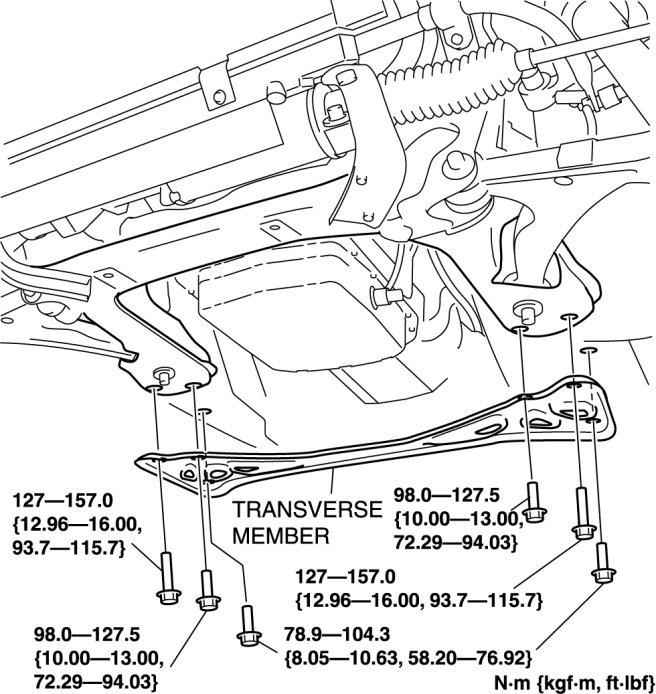

2. Remove the transverse member.






3. Install the transverse member.

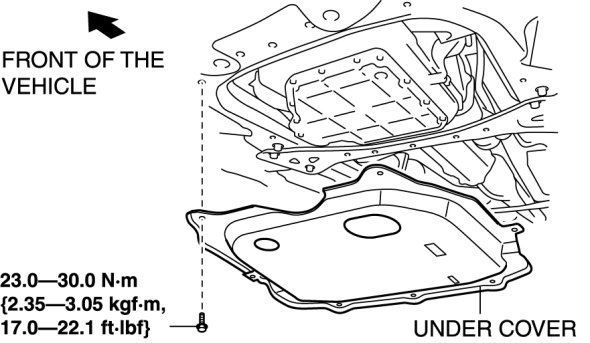

4. Install the under cover.
