Crankshaft Position Timing Ring: Testing and Inspection

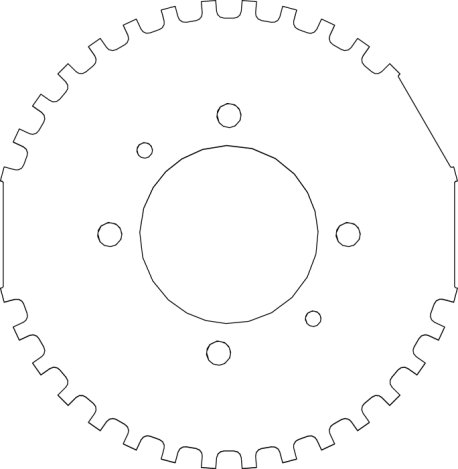

ECCENTRIC SHAFT POSITION PLATE INSPECTION [13B-MSP]

1. Verify that there are no cracks, damage, or corrosion on the projecting parts of the eccentric shaft position plate.






- If there are cracks, damage, or corrosion on the projecting parts, replace the eccentric shaft position plate. Service and Repair
