Electronic Throttle Control (ETC) System
ELECTRONIC THROTTLE CONTROL (ETC) SYSTEM

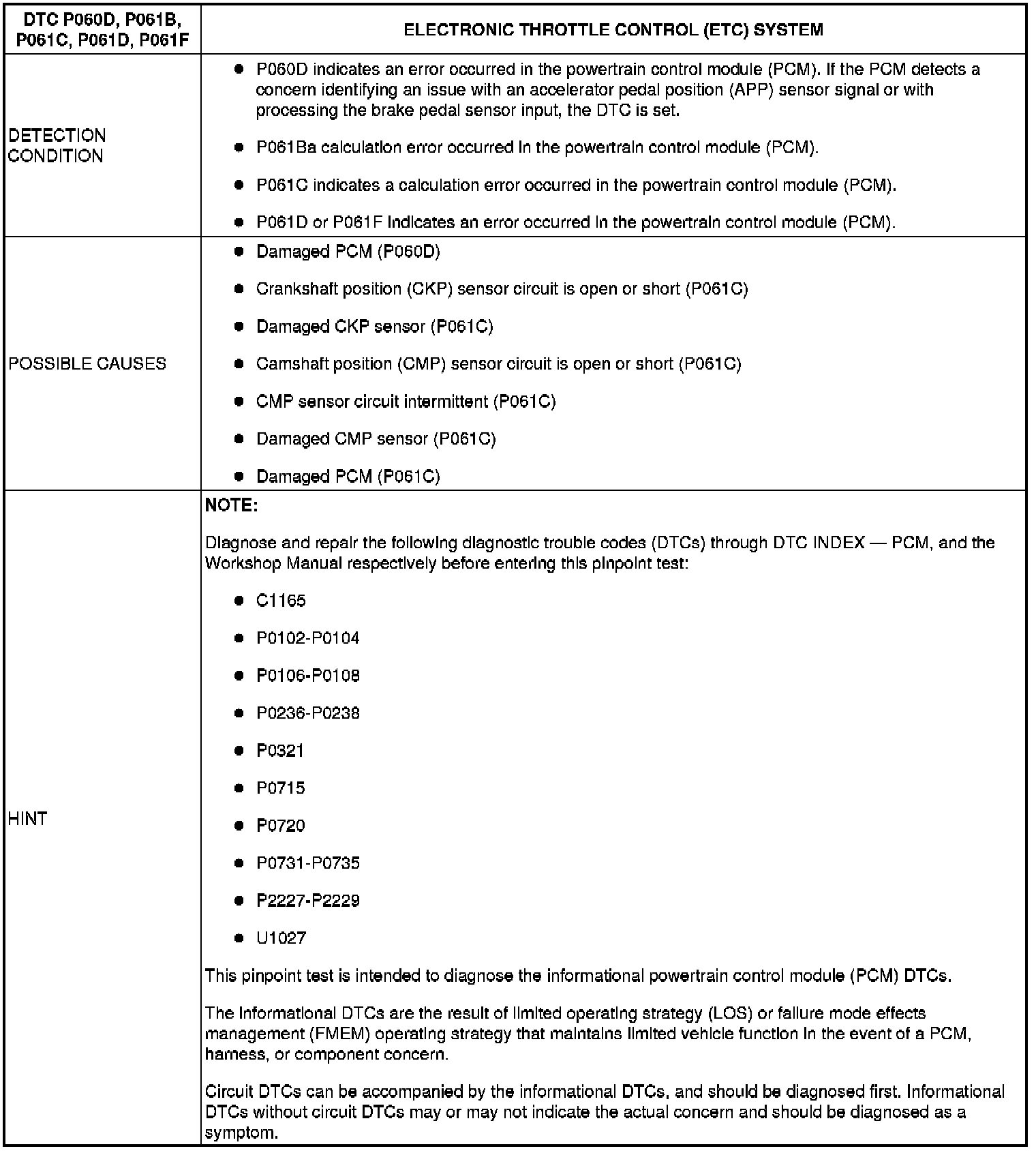

Detection Condition/Possible Causes:

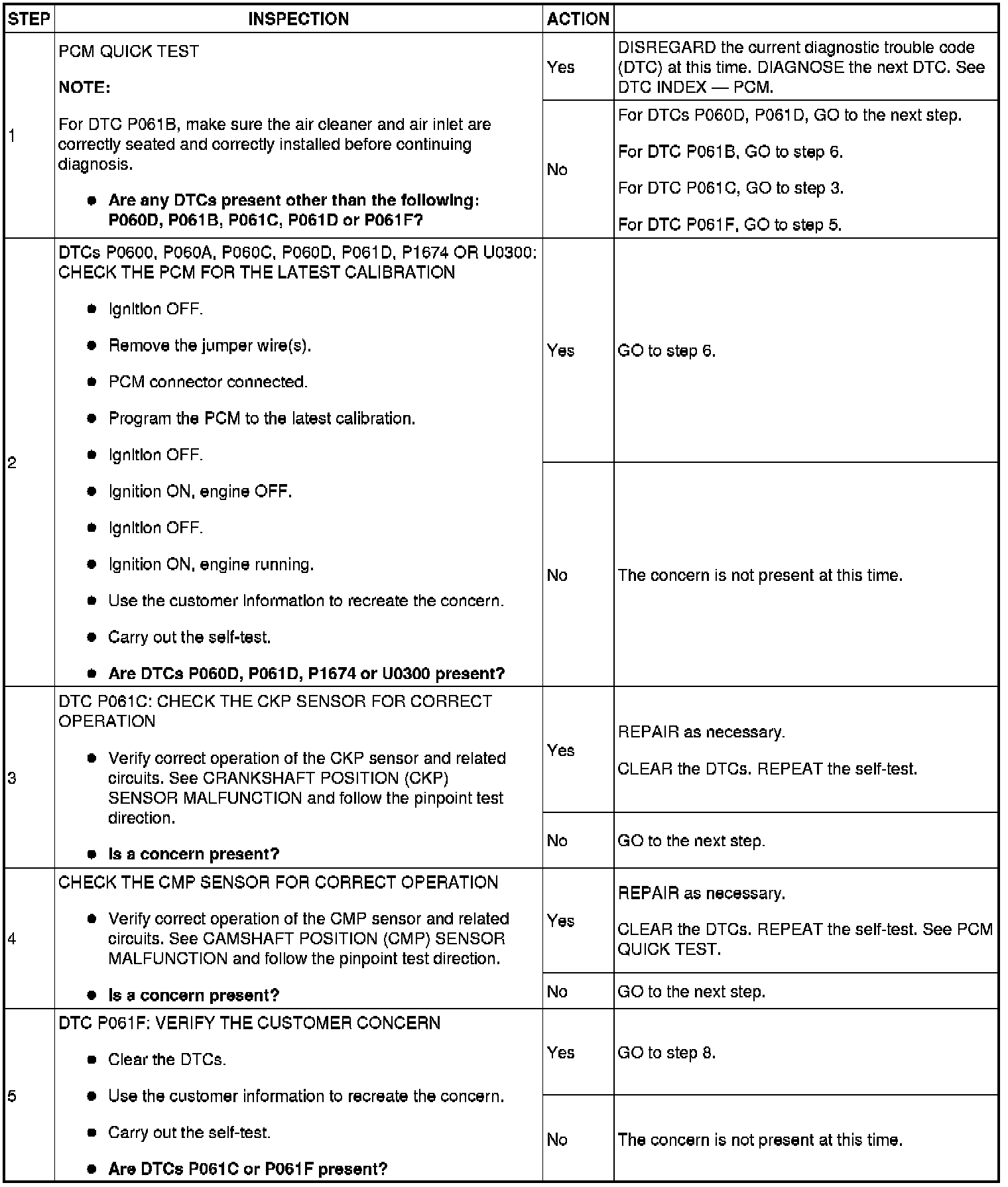

Step 1-Step 5:

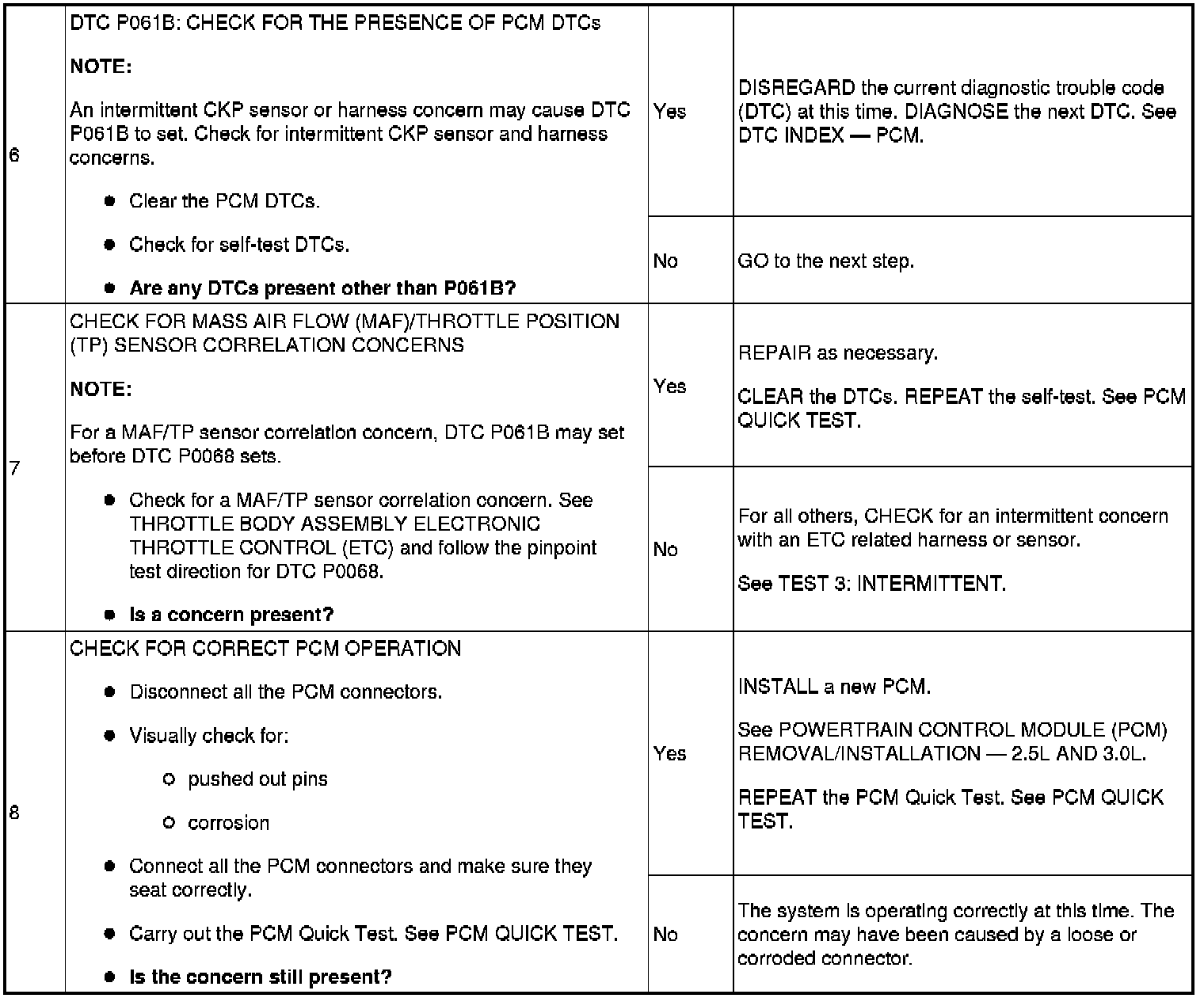

Step 6-Step 8:
