Exhaust Manifold

Catalytic Converter Manifold

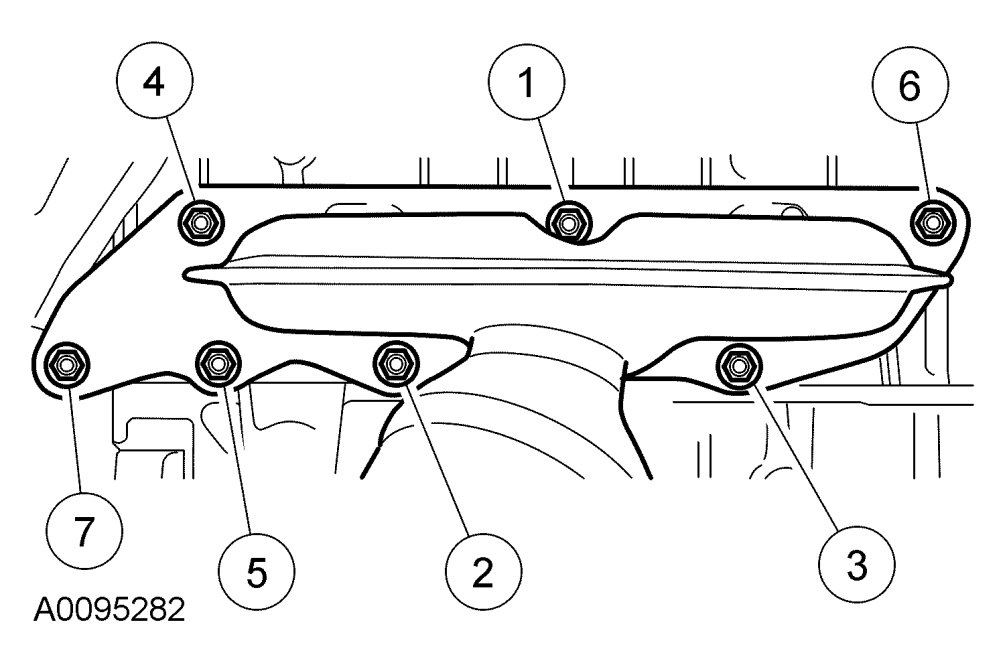

Catalytic converter and the 7 exhaust manifold nuts.

Tighten in 2 stages in the sequence shown.

Stage 1: Tighten to 47 Nm {4.7 kgf-m, 35 ft-lbf}
Stage 2: Tighten to 47 Nm {4.7 kgf-m, 35 ft-lbf}
