Manifold Pressure/Vacuum Sensor: Testing and Inspection

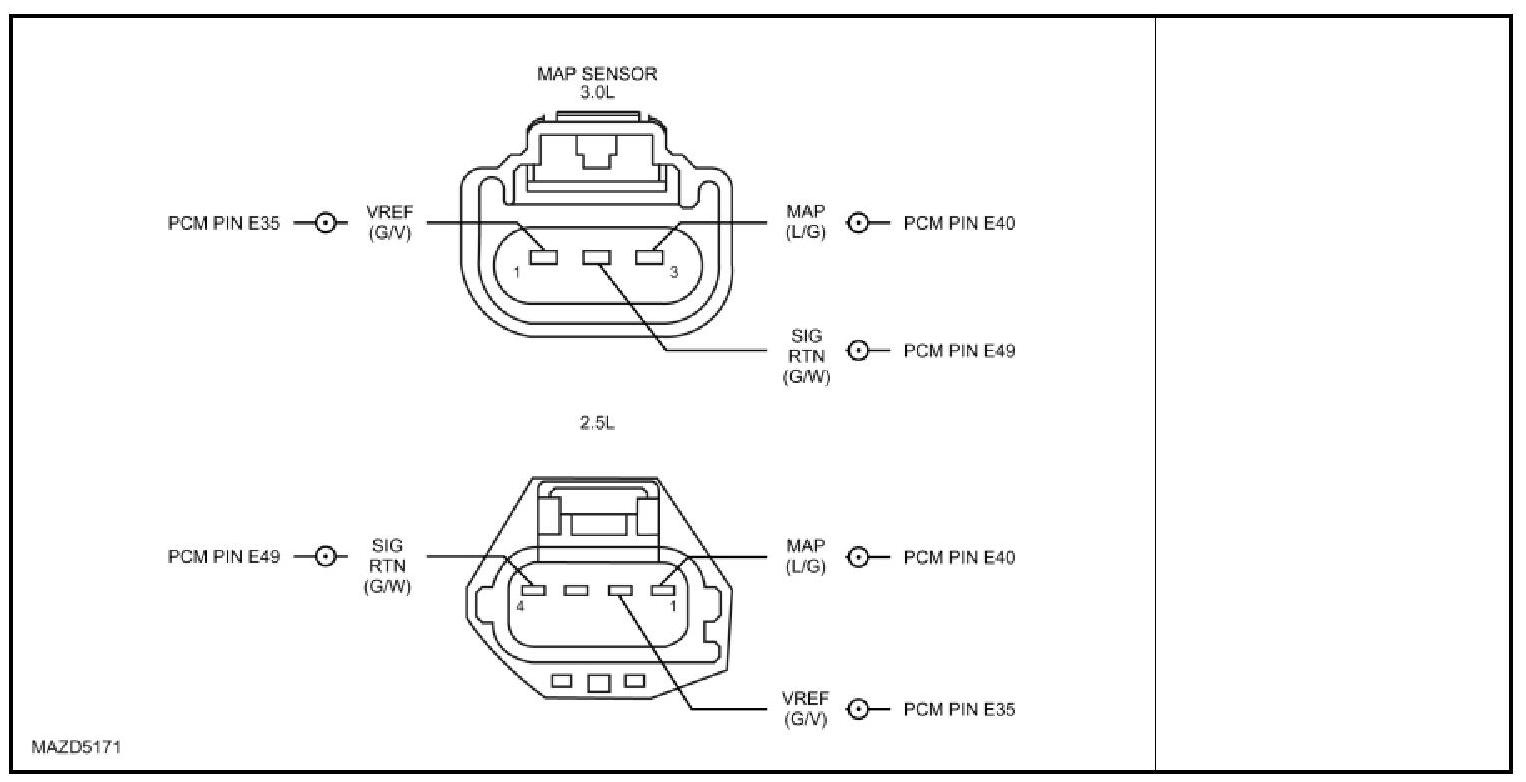

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

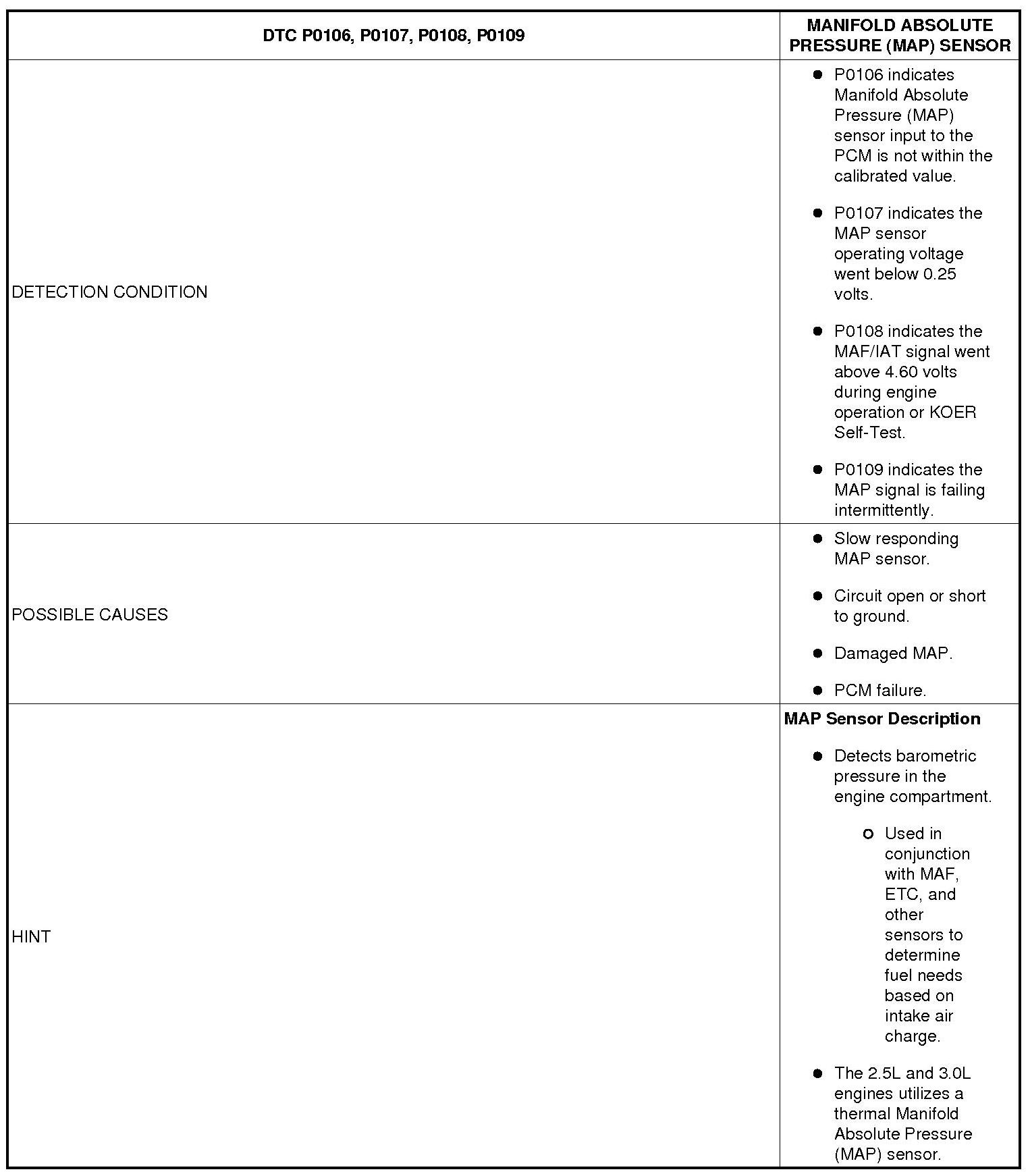

Detection Condition/Possible Causes:

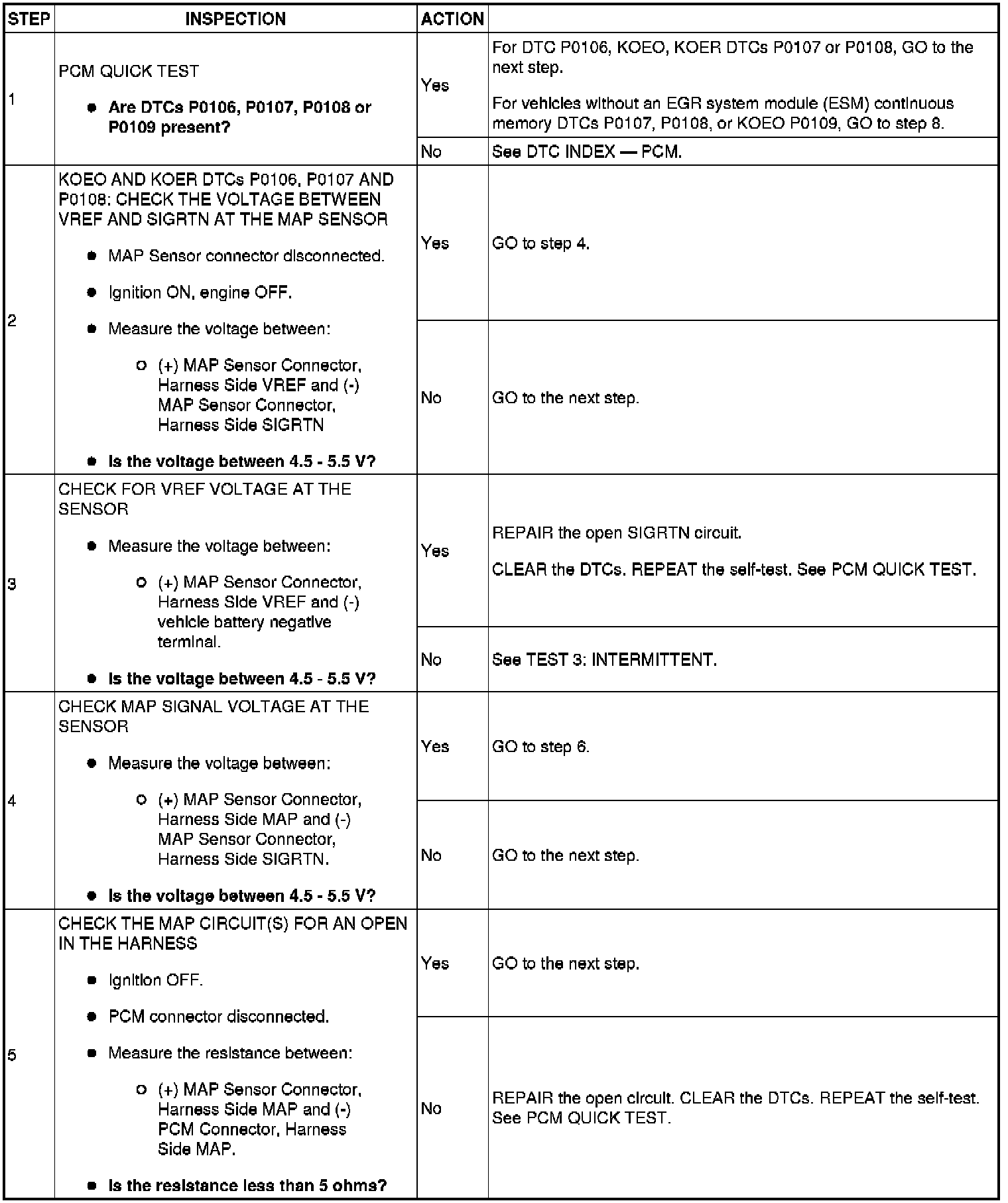

Step 1-Step 5:

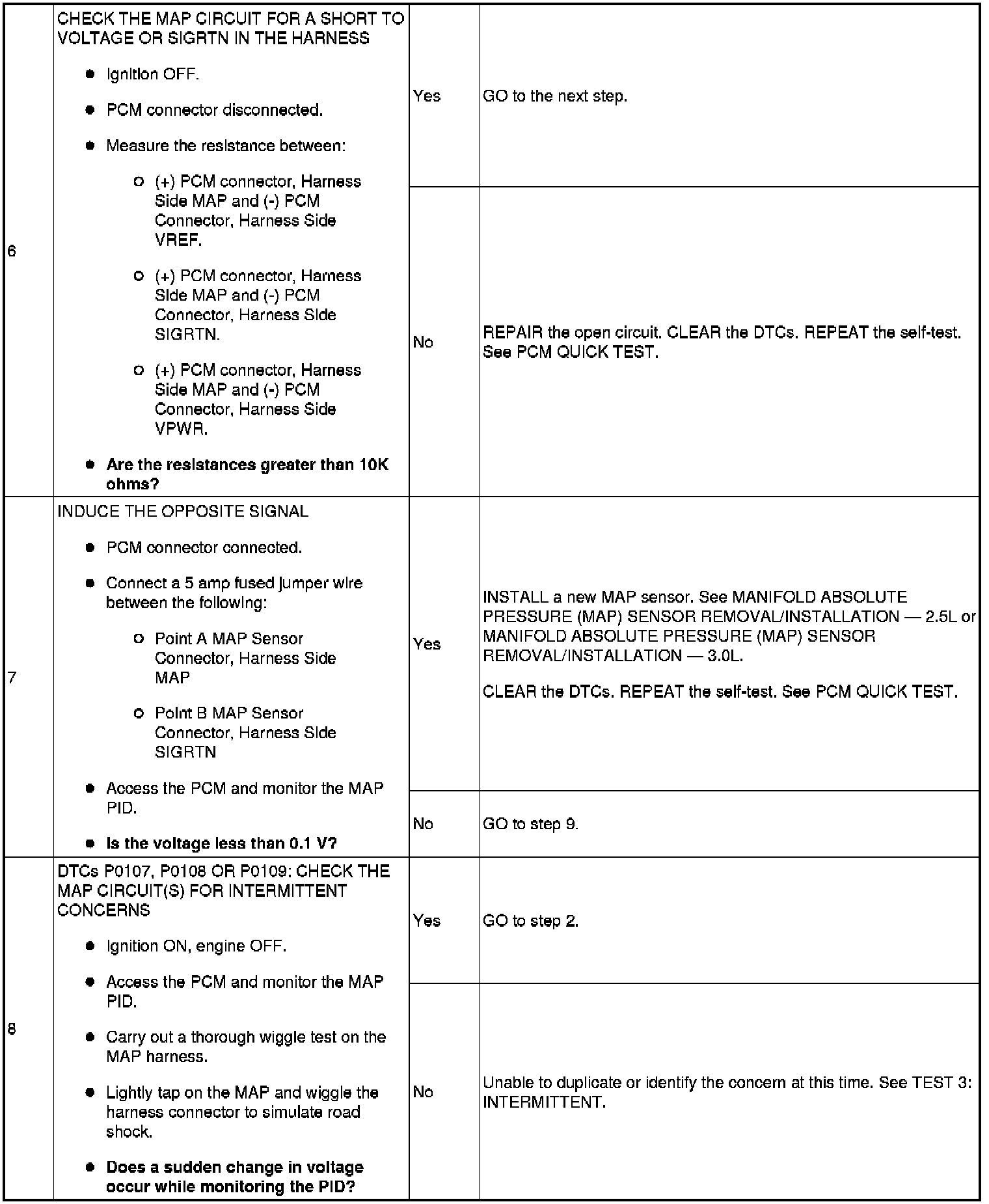

Step 6-Step 8:





Step 9:
