Selector Lever Removal/Installation: Notes

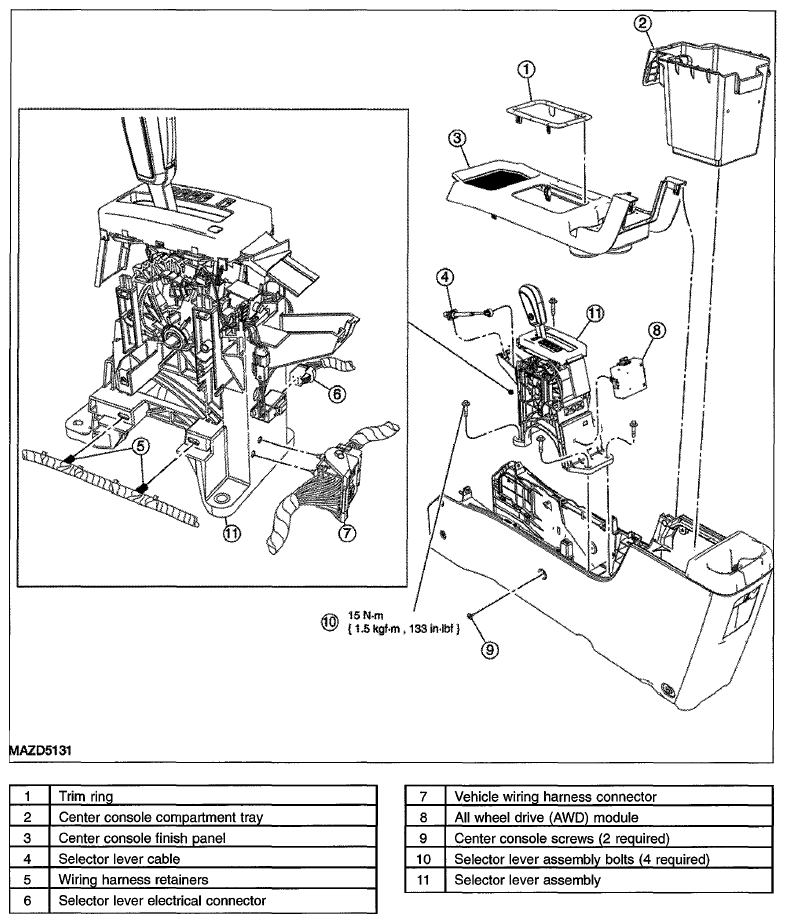

Fig 1: Selector Lever Replacement Components With Torque Specifications
G06767990Courtesy of MAZDA MOTORS CORP.
