Overdrive Switch: Testing and Inspection

O/D OFF SWITCH INSPECTION [FN4A-EL]

CAUTION:
- Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

1. Disconnect the selector lever component connector.
a. Disconnect the negative battery cable.

b. Remove the side wall. Side Wall Removal/Installation

c. Remove the front console component. Front Console Component Removal/Installation

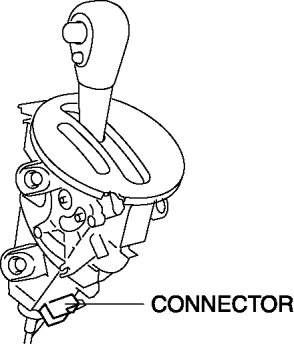

d. Disconnect the selector lever component connector.

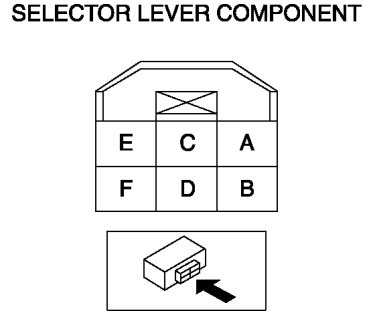

2. Verify continuity as indicated in the table.






- If there is any malfunction, replace the selector lever component. Service and Repair

O/D OFF switch specification
