Control System Device And Control Relationship Chart

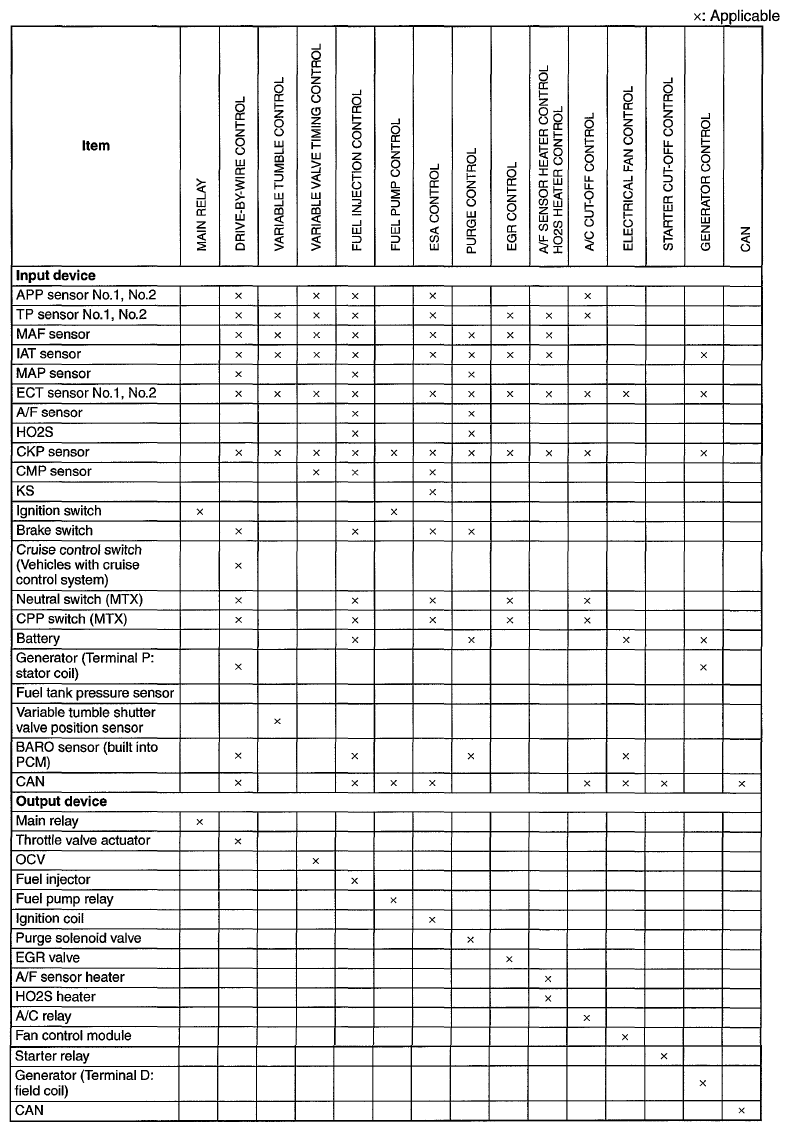

Fig 1: Control System Device And Control Relationship Chart (MZR 1.5)
G06940423Courtesy of MAZDA MOTORS CORP.
