ECT Sensor No. 1 Removal/Installation

  1. Disconnect the negative battery cable.
  2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  3. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5] .)
  4. Disconnect the ECT sensor No. 1 connector.
  5. Remove the ECT sensor No. 1 using the SST.
  6. Install in the reverse order of removal.
  7. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)

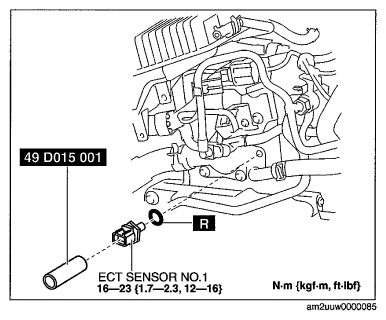

    Fig 1: Disconnecting ECT Sensor No. 1 Connector With Torque Specifications
    G06940763Courtesy of MAZDA MOTORS CORP.
