Seat Temperature Switch: Testing and Inspection

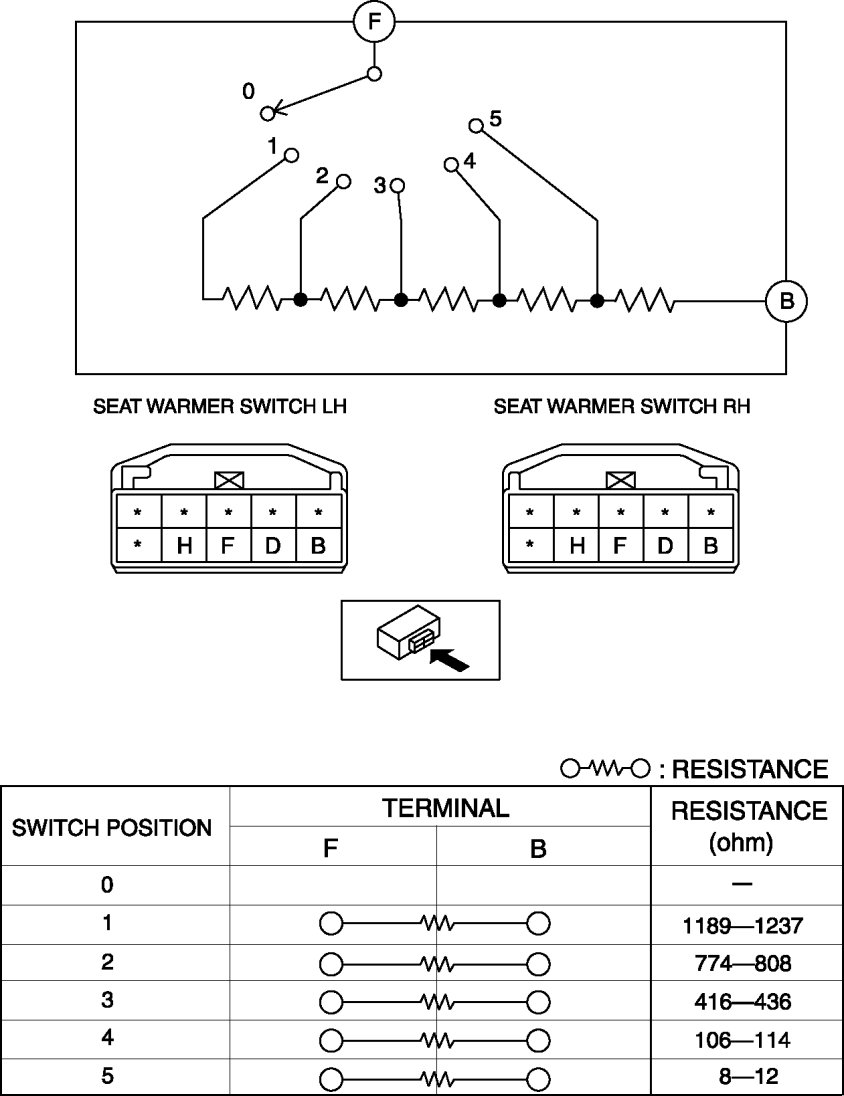

SEAT WARMER SWITCH INSPECTION

1. Inspect for resistance and continuity between the seat warmer switch terminals using a tester.






- If not as specified, replace the seat warmer switch.
