Theft-Deterrent System Reading Freeze Frame Data

THEFT-DETERRENT SYSTEM READING FREEZE FRAME DATA

NOTE:
- Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the READING FREEZE FRAME DATA.

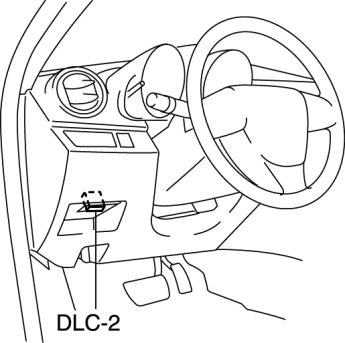

1. Connect the M-MDS to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

- When using the IDS (laptop PC)

1 Select "Body".
2 Select "Burglar Service Functions".

3. Then, select the following item from the screen menu.

- Select "Read FFD".

4. Read the record according to the directions on the screen.
