Trunk Lid Latch and Release Actuator/Trunk Compartment Light Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Trunk Lid Latch and Release Actuator/Trunk Compartment Light Switch

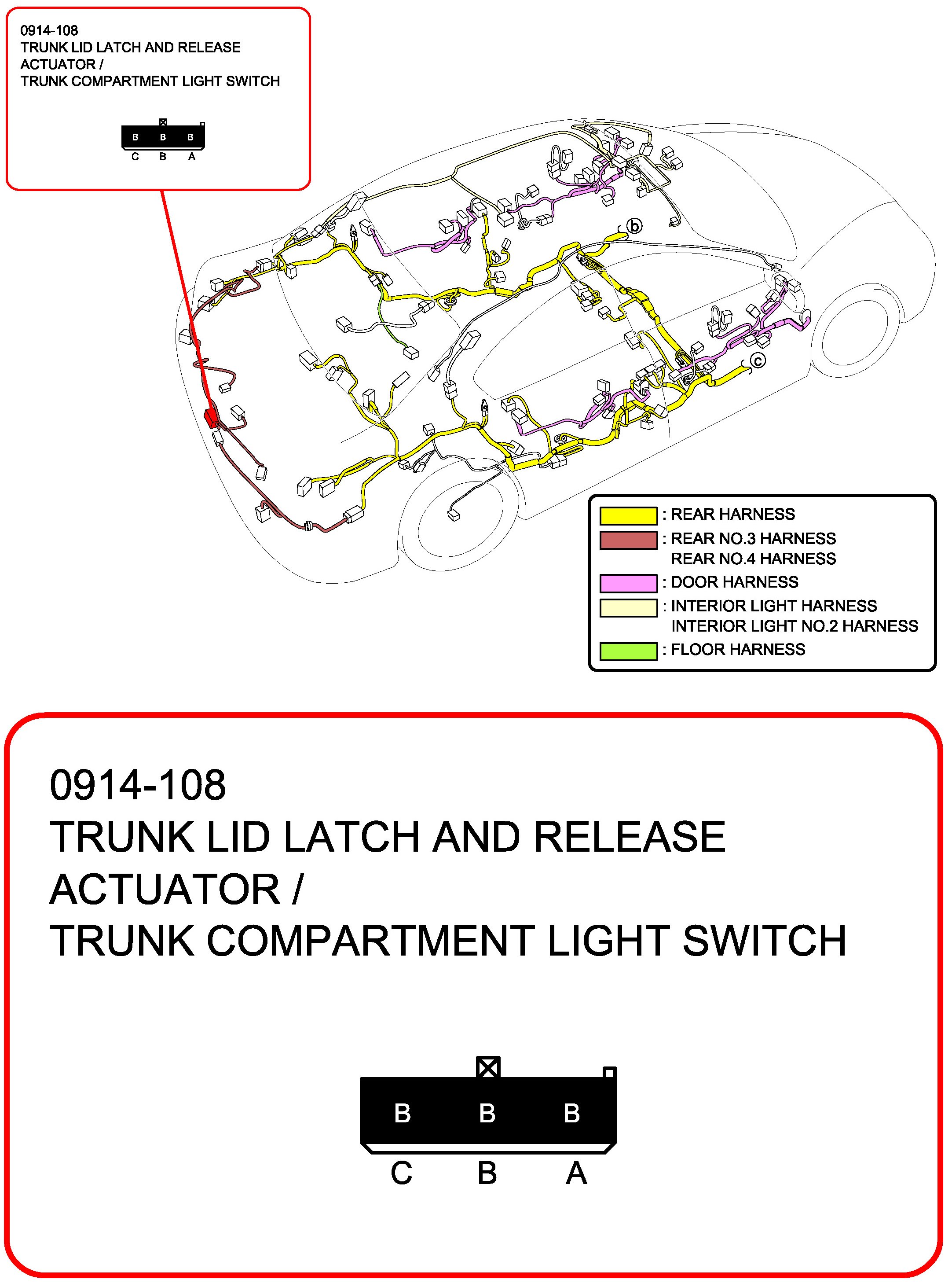

W/O Advanced Keyless Entry and Push Button Start

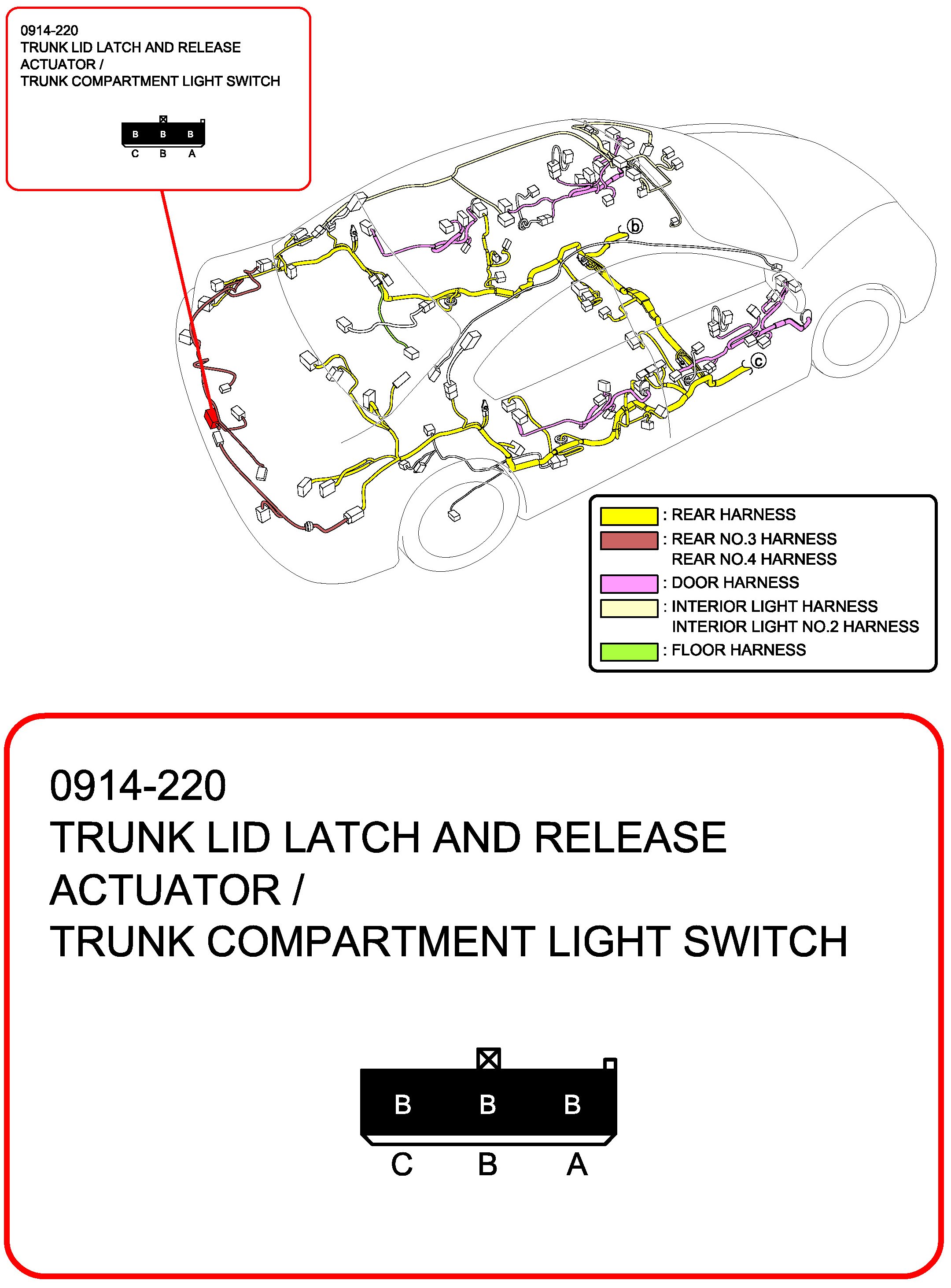

W/ Advanced Keyless Entry and Push Button Start
