Turn Signal Switch: Testing and Inspection

LIGHT SWITCH INSPECTION

Vehicles Without Auto Light System

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

3. Remove the light switch. Light Switch Removal/Installation

4. Verify that the continuity between the light switch terminals is as indicated in the table.

- If not as indicated in the table, replace the light switch.

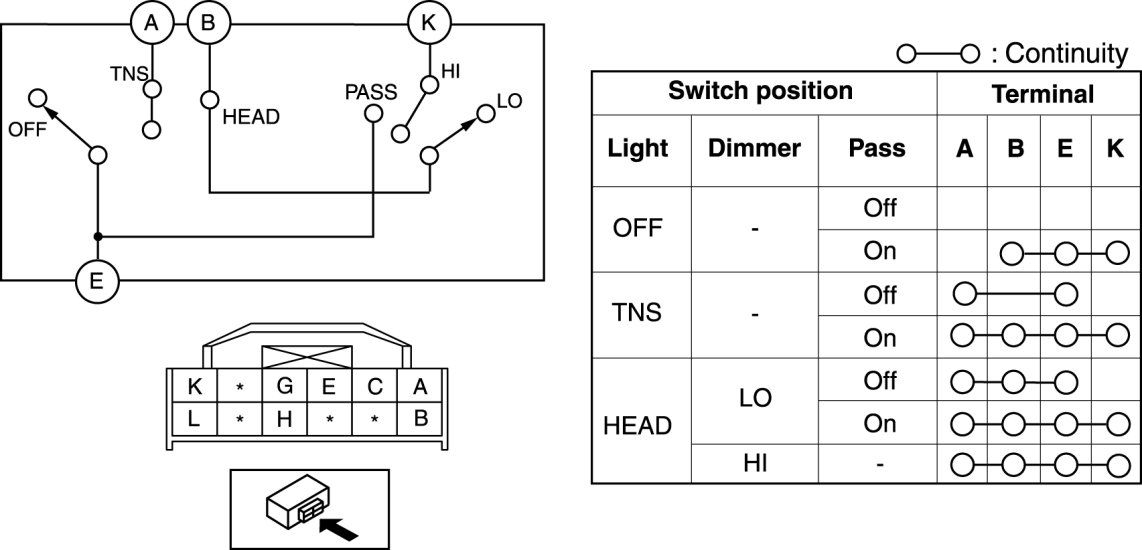

Headlight Switch

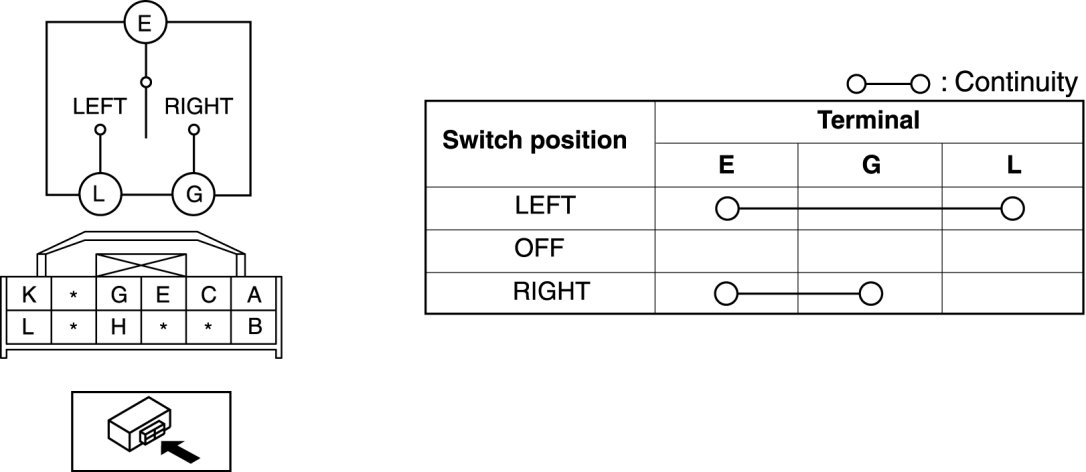

Turn Light






Vehicles With Auto Light System

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

3. Remove the light switch. Light Switch Removal/Installation

4. Verify that the continuity between the light switch terminals is as indicated in the table.

- If not as indicated in the table, replace the light switch.

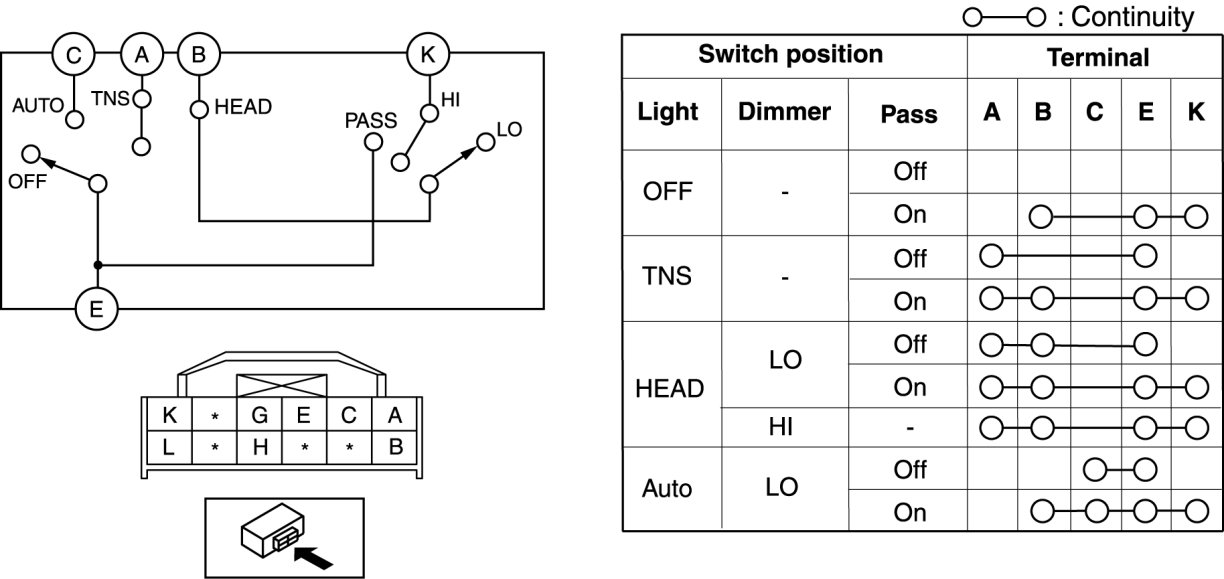

Headlight Switch





Turn Switch
