Vanity Lamp: Service and Repair

VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

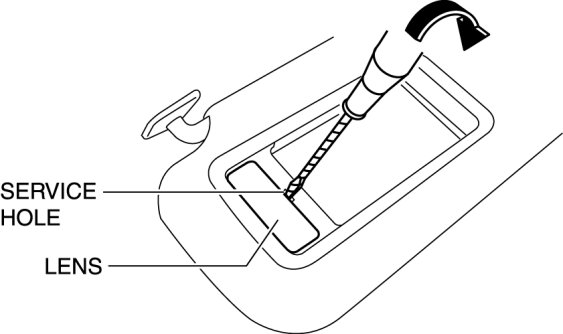

2. Insert a tape-wrapped fastener remover into the service hole, and pry it in the direction indicated by the arrow to remove the lens.

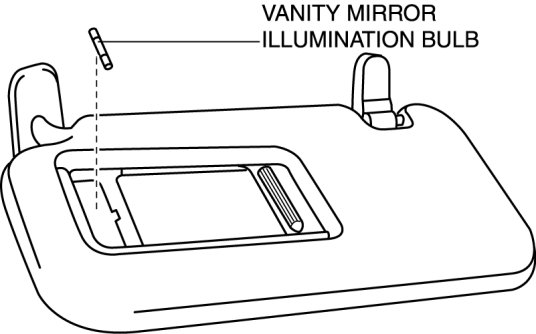

3. Remove the vanity mirror illumination bulb.






4. Install in the reverse order of removal.
