Cabin Air Filter / Purifier: Service and Repair

AIR FILTER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the side wall. Side Wall Removal/Installation

3. Disconnect the evaporator temperature sensor connector.

4. Disconnect the power MOS FET connector. (Full-auto air conditioner)

5. Disconnect the resistor connector. (Manual air conditioner)

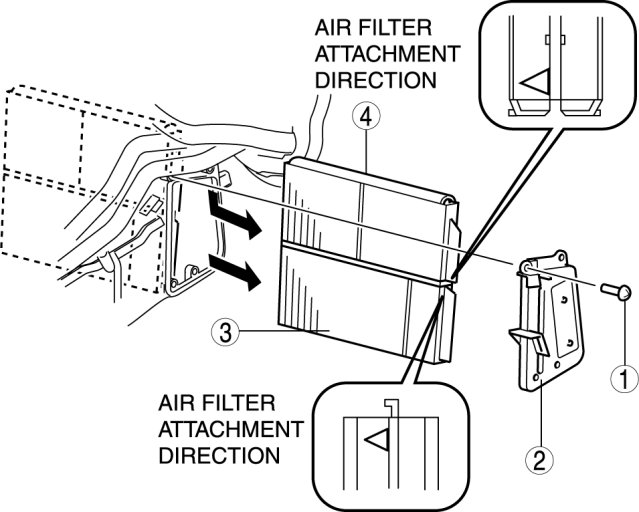

6. Remove in the order indicated in the table.










7. Install in the reverse order of removal.

Air Filter Installation Note

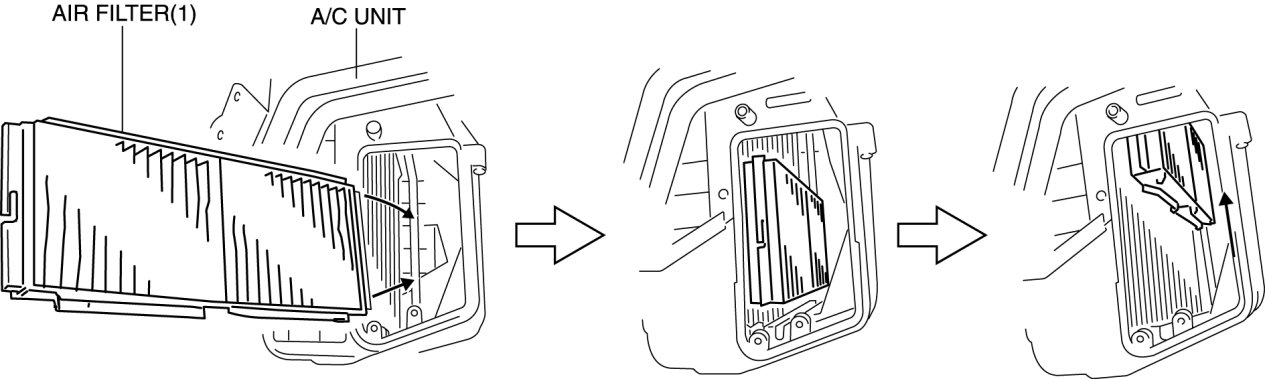

1. Install the air filter (1) as shown in the figure.

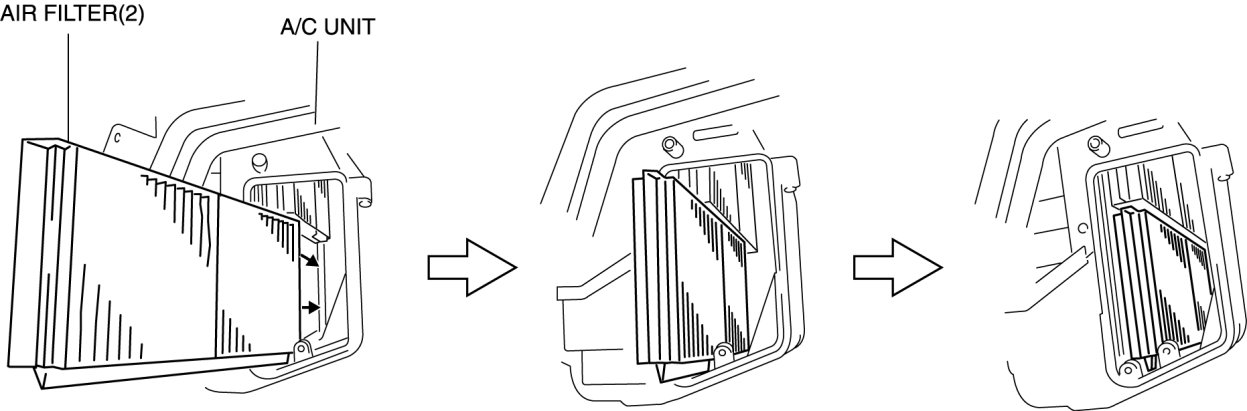

2. Install the air filter (2) as shown in the figure.
