On-Board Diagnostic Wiring Diagram - Two Step Deployment Control System
ON-BOARD DIAGNOSTIC WIRING DIAGRAM [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

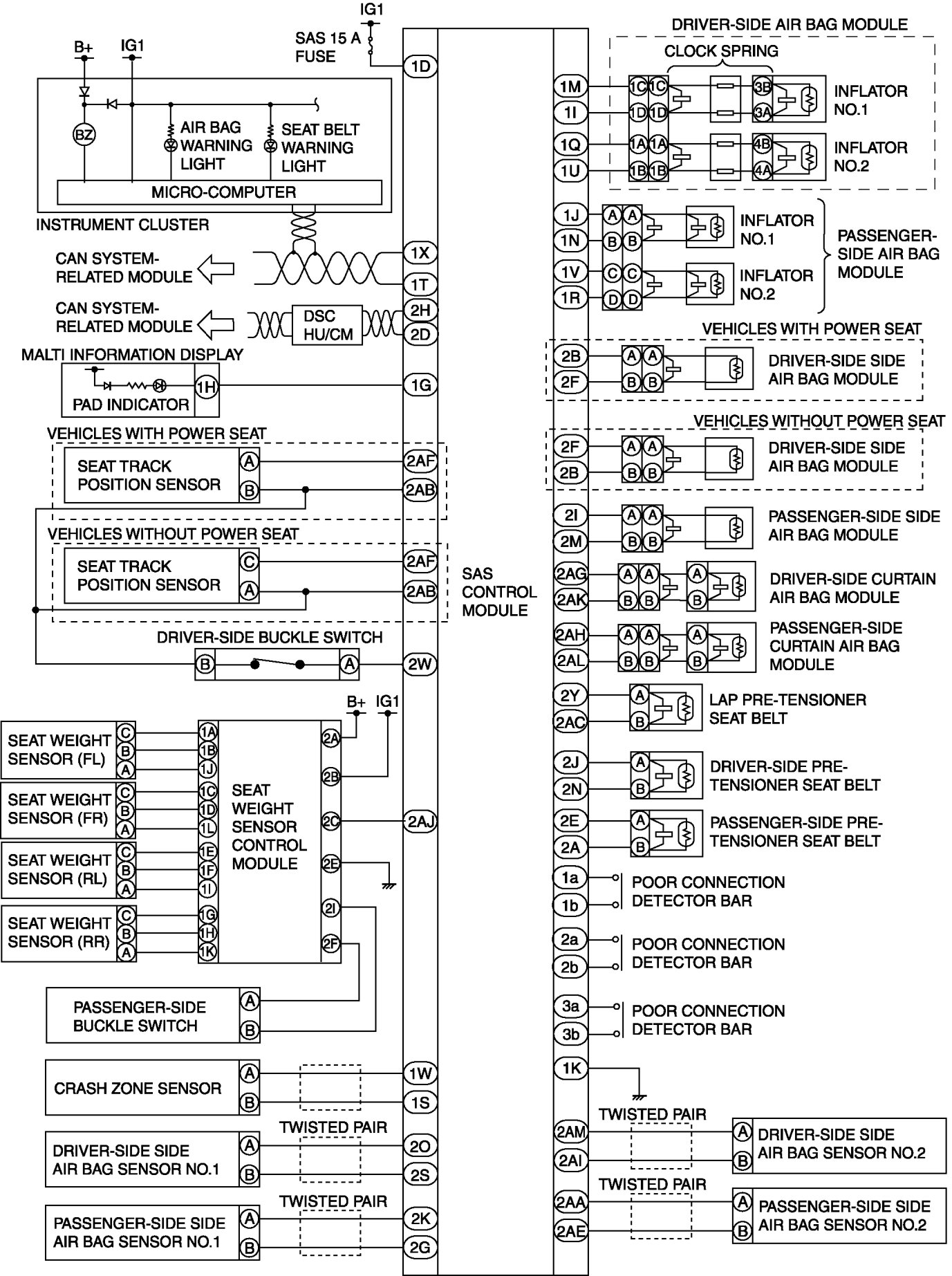

Vehicles With DSC

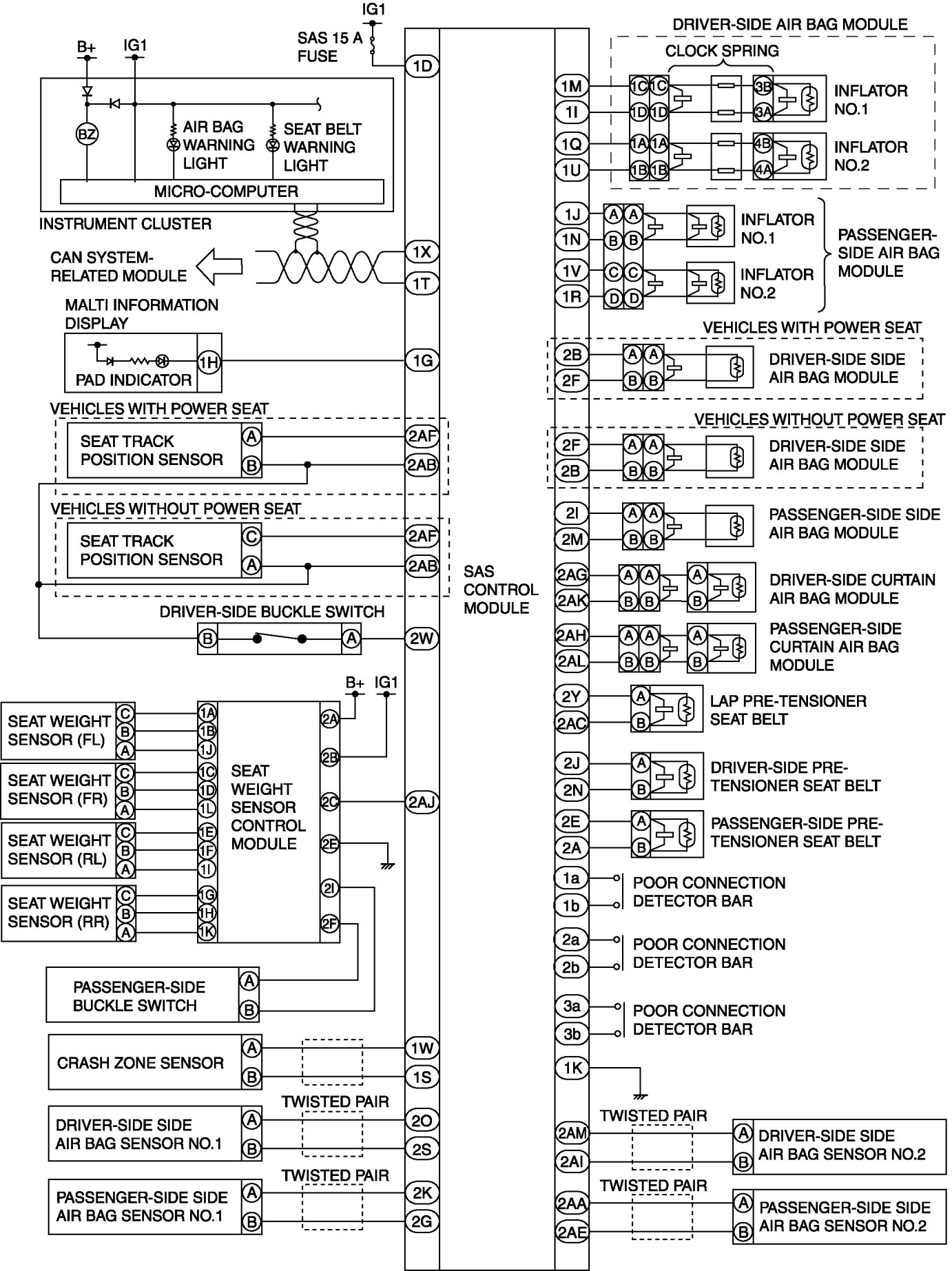

Vehicles Without DSC
ON-BOARD DIAGNOSTIC WIRING DIAGRAM [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
Vehicles With DSC
Vehicles Without DSC
