Outer Mirror Glass Installation

  1. Connect the mirror heater connectors, (vehicles with heated outer mirrors)
  2. Press part C on the outer mirror glass and install pin C.
  3. Press part A on the outer mirror glass and install pins A.
  4. Press part B on the outer mirror glass and install pins B.

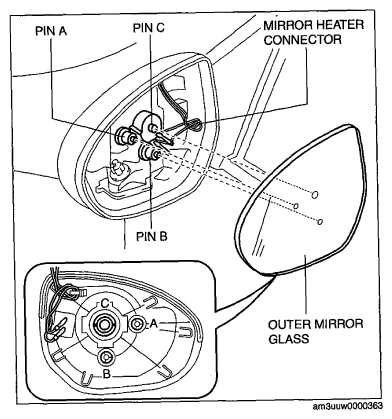

    Fig 1: Removing Outer Mirror Glass, Mirror Heater Connectors And Pins
    G06731851Courtesy of MAZDA MOTORS CORP.
