Control System Location Index

WARNING: This page is about a different variant/trim than selected.

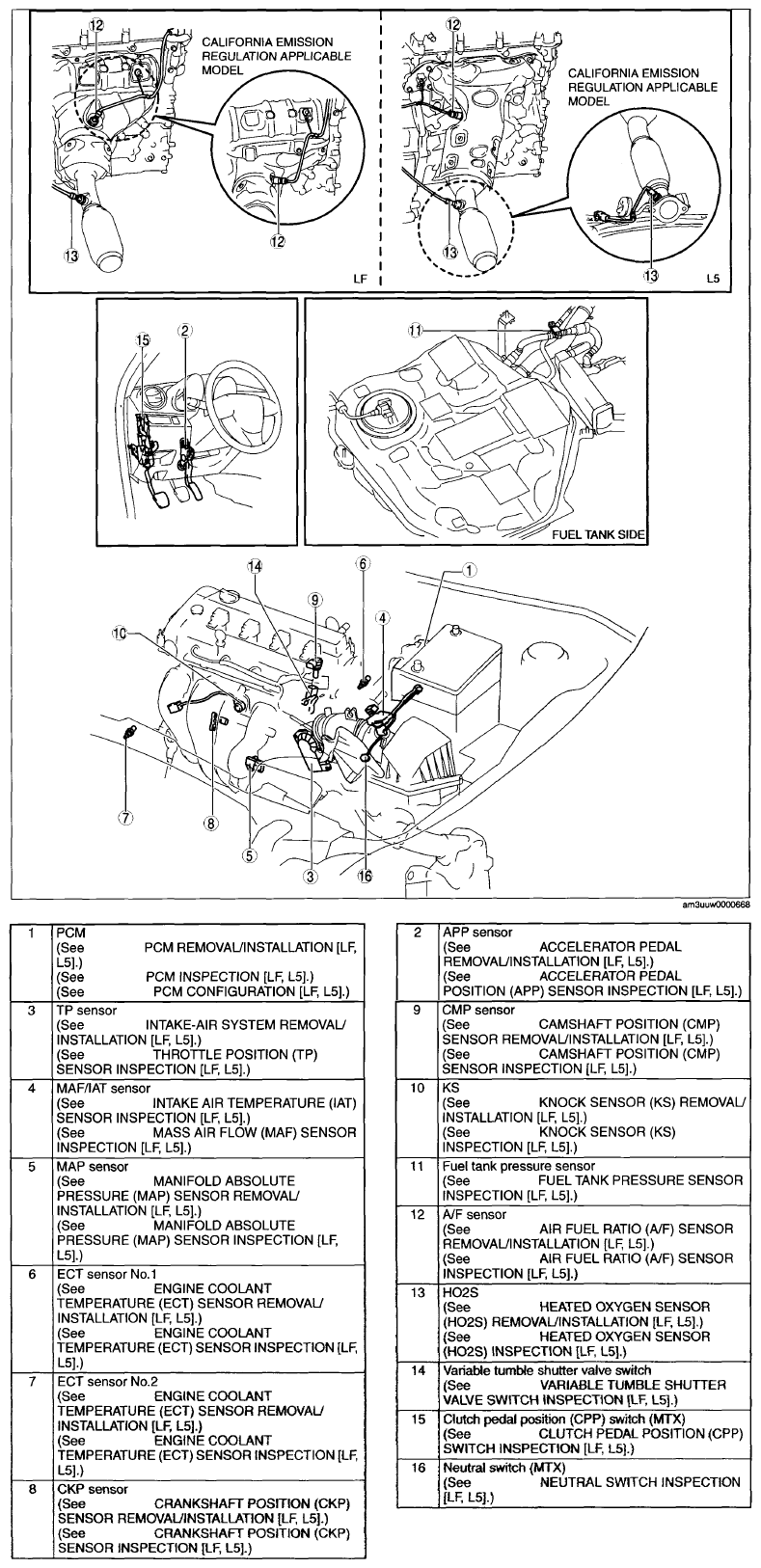

Fig 1: Identifying Control System Components Location
G07868489Courtesy of MAZDA MOTORS CORP.
