Seat Temperature Switch: Testing and Inspection

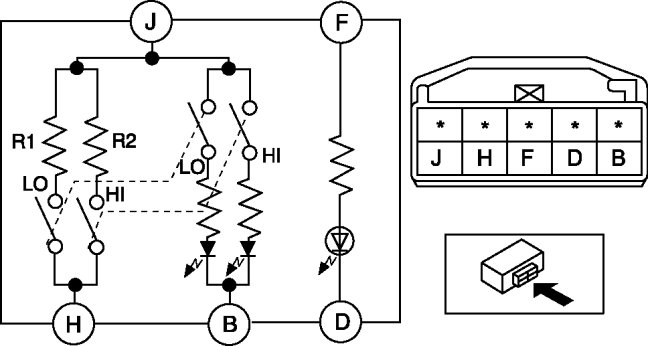

SEAT WARMER SWITCH INSPECTION

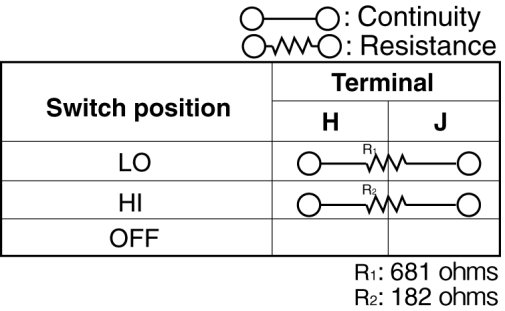

1. Inspect for continuity between the seat warmer switch terminal J, and connect terminal H using an ohmmeter.






- If not as specified, replace the seat warmer switch.





2. Apply battery voltage to seat warmer switch terminal J, and connect terminal B to ground.

3. Seat warmer switch to Lo or Hi position.

4. Verify that the LED illuminates.

- If there is any malfunction, replace the seat warmer switch.

5. Apply battery voltage to seat warmer switch terminal F, and connect terminal D to ground.

6. Verify that the LED illuminates.

- If there is any malfunction, replace the seat warmer switch.
