DTC P2123:00: Notes
DTC DETECTING CONDITION REFERENCE CHART
| DTC P2123:00 |
APP sensor No. 1 circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from APP sensor No. 1 when the engine is running. If the input voltage is above 4.8 V
, the PCM determines that the APP sensor No. 1 circuit input voltage is high.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- APP sensor connector or terminal malfunction
- PCM connector or terminal malfunction

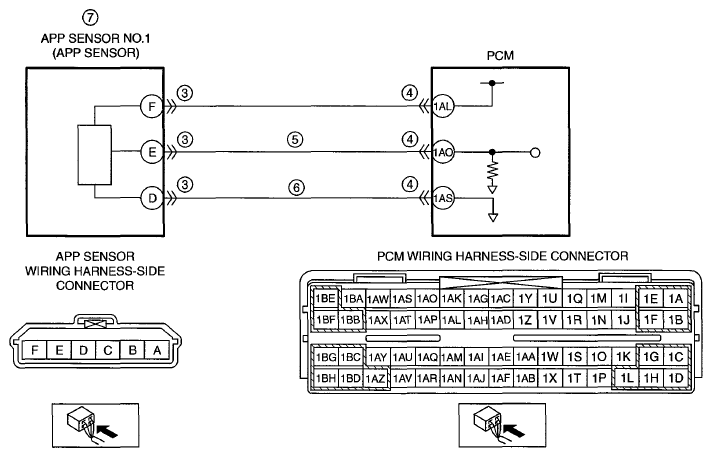

- Short to power supply in wiring harness between APP sensor terminal E and PCM terminal 1AO
- Open circuit in wiring harness between APP sensor terminal D and PCM terminal 1 AS
- APP sensor No. 1 malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
