Auto Light-Off Control Module Removal/Installation

1. Disconnect the negative battery cable.
2. Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
3. Removal the nut.
4. Disconnect the connectors.
5. Remove the auto light-off control module.
6. Install in the reverse order of removal.

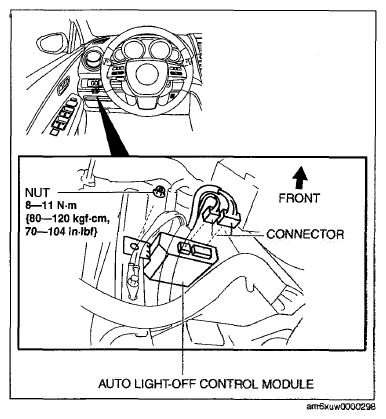

Fig 1: Auto Light-Off Control Module, Connector And Nut With Torque Specification

Courtesy of MAZDA MOTORS CORP.
