Vehicles With Keyless Entry System
DTC B1318 DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Battery voltage low |
| DETECTION CONDITION |
Input voltage from the battery is excessively low |
| POSSIBLE CAUSE |
- Fuse malfunction
- Battery malfunction
- Generator malfunction
- Connector or terminal malfunction
- Ignition switch malfunction

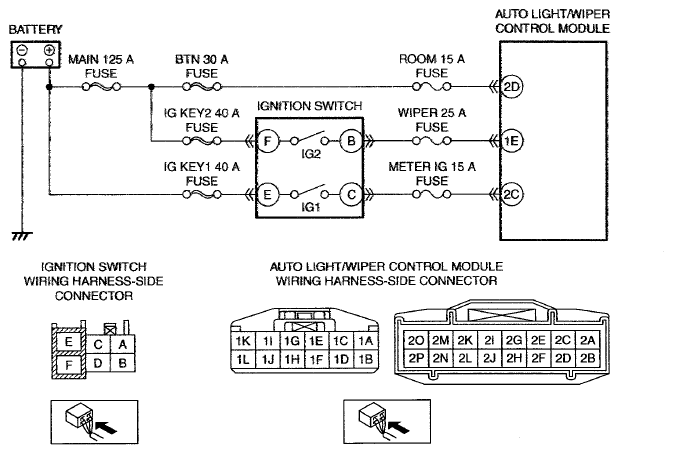

- Short to ground or open circuit in wiring harness between positive battery terminal and auto light/wiper control module terminal 2D
- Short to ground or open circuit in wiring harness between positive battery terminal and ignition switch terminal E
- Short to ground or open circuit in wiring harness between positive battery terminal and ignition switch terminal F
- Short to ground in wiring harness between ignition switch terminal B and auto light/wiper control module terminal 1E
- Short to ground in wiring harness between ignition switch terminal C and auto light/wiper control module terminal 2C
- Open circuit in wiring harness between ignition switch terminal B and auto light/wiper control module terminal 1E
- Open circuit in wiring harness between ignition switch terminal C and auto fight/wiper control module terminal 2C
- Auto light/wiper control module malfunction
|
|
|
