Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Symptom Troubleshooting [Keyless Entry System]
>>
Keyless Entry System Wiring Diagram [Keyless Entry System]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

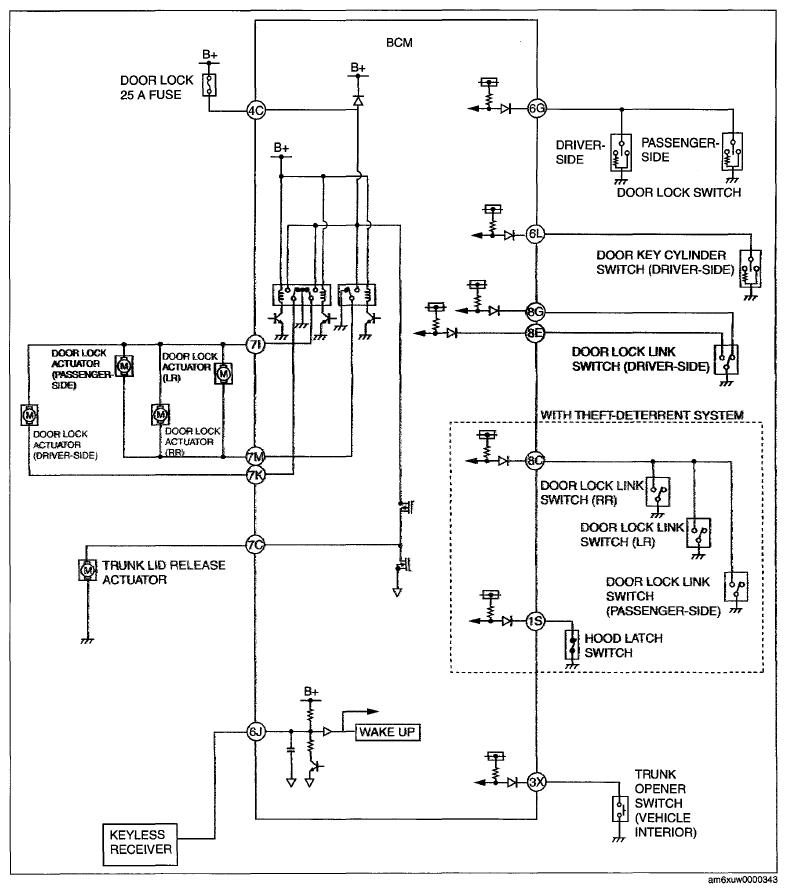

Keyless Entry System Wiring Diagram [Keyless Entry System]
Fig 1: Keyless Entry System Wiring Diagram [Keyless Entry System]
Courtesy of MAZDA MOTORS CORP.
