Keyless Antenna Removal/Installation - Advanced Keyless Entry And Start System

KEYLESS ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND START SYSTEM]

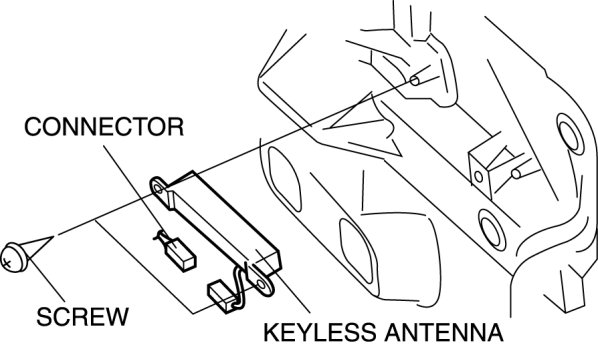

Exterior, LF/RF

1. Disconnect the negative battery cable.

2. Remove the door trim. Front Door Trim Removal/Installation

3. Remove the screws.

4. Disconnect the connector, then remove the keyless antenna.






5. Install in the reverse order of removal.

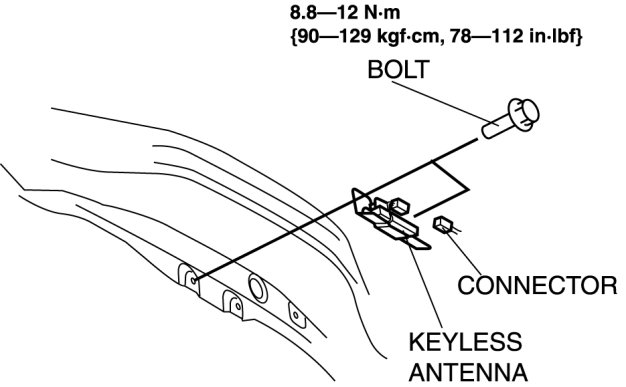

Exterior, Rear

1. Disconnect the negative battery cable.

2. Remove the bolts.

3. Disconnect the connector, then remove the keyless antenna.






4. Install in the reverse order of removal.

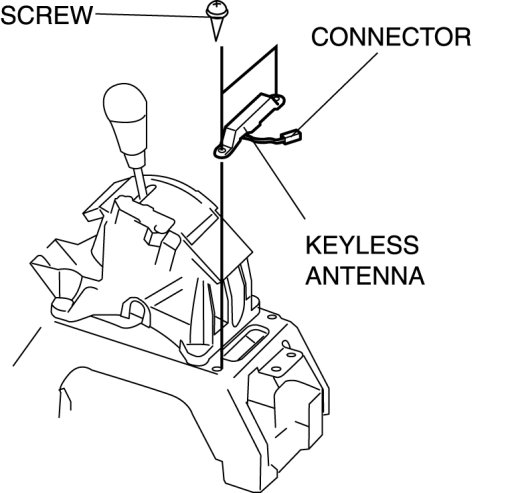

Interior, Middle

1. Disconnect the negative battery cable.

2. Remove the console. Console Removal/Installation

3. Remove the screws.

4. Disconnect the connector, then remove the keyless antenna.






5. Install in the reverse order of removal.

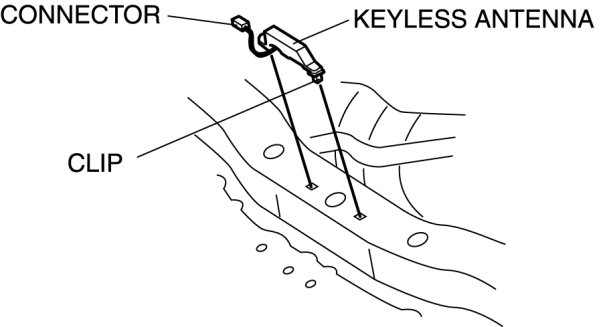

Interior, Rear

1. Disconnect the negative battery cable.

2. Remove the rear seat. Rear Seat Removal/Installation

3. Remove the clips.

4. Disconnect the connector, then remove the keyless antenna.






5. Install in the reverse order of removal.
