Keyless Entry Receiver: Service and Repair

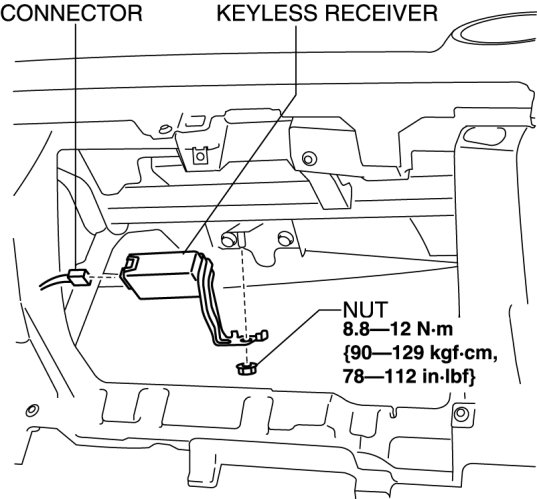

KEYLESS RECEIVER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the glove compartment. Service and Repair

3. Disconnect the keyless receiver connector.

4. Remove the nut, then remove the keyless receiver.

5. Install in the reverse order of removal.
